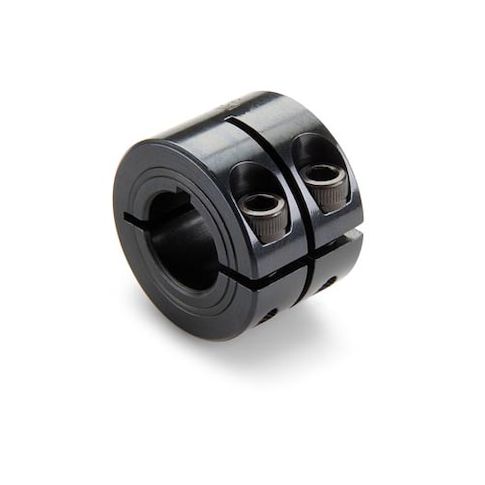

Keyed Shaft Collar, 1pc Double Wide, Bore 16mm, Steel, OD 34mm MPN:MWCLK-16-F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3402859
Keyed Shaft Collar, 1pc Double Wide, Bore 16mm, Steel, OD 34mm
This Ruland keyed shaft collar is a versatile and durable component suitable for a variety of applications, including as a shaft collar or rigid coupling. Its unique design features a 16mm bore, 5mm keyway, and 34mm OD, providing superior holding power and flexibility. The one-piece double wide collar allows for easy installation and adjustment, while its precision face and tightly controlled face to bore perpendicularity ensure accurate alignment and load bearing. Ideal for use in positive drive applications, mechanical stops, or component alignment, this shaft collar is manufactured from lead-free steel and meets rigorous standards for holding power and corrosion resistance.
Top product features:
- This one-piece double wide shaft collar has a 16mm bore and 5mm keyway, allowing for use in positive drive applications and for extra torque capacity when used as a rigid coupling.
- The collar has about 25% more holding power than standard round bore collars of equivalent bore size, providing superior holding power.
- The work surface is precision faced, with tightly controlled face to bore perpendicularity (TIR of < 0.05mm), making it suitable for use as a load bearing face, mechanical stop, or for component alignment.
Top product applications:
- Shaft positioning in CNC machining centers
- Component alignment in precision mechanical assemblies
- Mechanical stops in high-precision applications
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece double wide shaft collar has a 16mm bore, 5mm keyway, 34mm OD, and 28mm width. It has about 25% more holding power than standard round bore collars of equivalent bore size and can be used as a short rigid coupling in applications where standard length rigid couplings will not fit. The addition of a keyway allows for use in positive drive applications as a shaft collar or for extra torque capacity when used as a rigid coupling. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 1215 lead-free steel to a fine burr-free finish with Ruland's proprietary black oxide formulation which creates a fine glossy appearance and increases holding power and corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.30
Product info last updated on February 24, 2026 11:05am UTC
Category: Bearings, V-belts and Power Transmission Equipment
