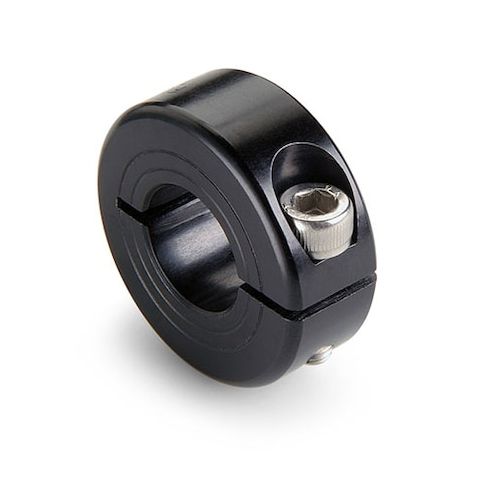

Shaft Collar, 1pc Clamp, Bore 25mm, OD 45mm, Anodized Aluminum MPN:MCL-25-AN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3401197
Shaft Collar, 1pc Clamp, Bore 25mm, OD 45mm, Anodized Aluminum
The Ruland Shaft Collar is a precision-engineered solution for various industrial applications. Its one-piece design with a 25mm bore and 45mm OD provides a secure and adjustable fit on shafts, ideal for load-bearing faces, mechanical stops, and component alignment. The collar's tightly controlled face-to-bore perpendicularity ensures accuracy and reliability. Made from high-strength 2025 black anodized aluminum, it offers light corrosion resistance and a fine burr-free finish. Suitable for use in machinery, robotics, and automation, this shaft collar provides superior holding power and is compliant with RoHS and REACH regulations, making it an excellent choice for industries requiring precision and reliability.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced.
- The collar is stamped with the bore size for ease of identification.
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece shaft collar has a 25mm bore, 45mm OD, and 15mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 black anodized aluminum to a fine burr-free finish for light corrosion resistance. Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on January 30, 2026 4:45pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
