Shaft Collar, 1pc Clamp, Bore 0.3750", OD 24mm, Anodized Aluminum MPN:MCL-6E-AN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3400384

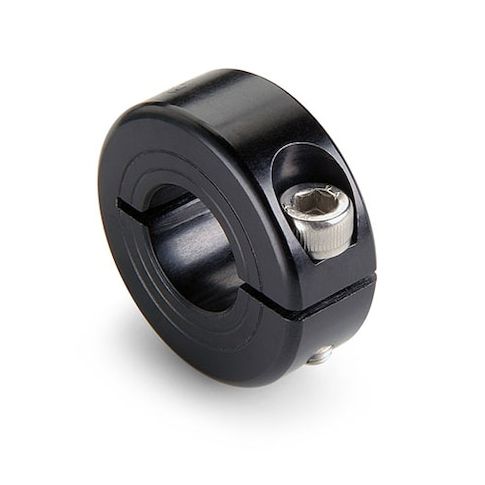

Shaft Collar, 1pc Clamp, Bore 0.3750", OD 24mm, Anodized Aluminum
Ruland's one-piece international series shaft collar is a versatile and reliable solution for a variety of applications. Its infinitely adjustable design ensures a secure grip on shafts without marring the surface, making it ideal for use in precision machinery, mechanical stops, and component alignment. The collar's tightly controlled face-to-bore perpendicularity and high-strength 2025 black anodized aluminum construction provide exceptional holding power and light corrosion resistance. Suitable for use in a range of industries, including aerospace, medical, and industrial automation, this shaft collar is a valuable addition to any engineer's toolkit.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The collar is infinitely adjustable.
- The collar has superior holding power when compared to set screw collars.
Top product applications:
- Shaft collars are used as a load bearing face in precision machinery.
- They are used as a mechanical stop to position components in an assembly.
- They are used for component alignment in a variety of applications.
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 0.3750" bore, 24mm OD, and 9mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 black anodized aluminum to a fine burr-free finish for light corrosion resistance. Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.02
Product info last updated on February 4, 2026 10:23am UTC
Category: Bearings, V-belts and Power Transmission Equipment
