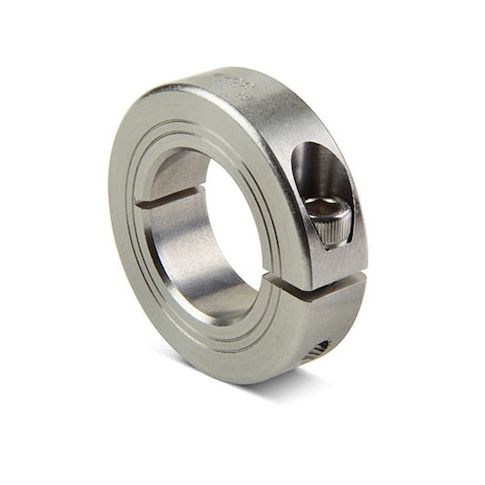

Shaft Collar, 1pc Clamp, Bore 0.9375", OD 45mm, 303 Stainless Steel MPN:MCL-15E-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3400366
Shaft Collar, 1pc Clamp, Bore 0.9375", OD 45mm, 303 Stainless Steel
This one-piece clamp-style shaft collar from Ruland offers superior holding power and precision fitment, making it ideal for applications requiring load-bearing faces, mechanical stops, or component alignment. The 303 stainless steel construction provides consistent corrosion resistance, while the fine burr-free finish ensures smooth operation. The collar's infinitely adjustable design and metric screw allow for easy installation with metric tools, even when working with inch-bore shafts. Suitable for use in a variety of industries, including aerospace, medical, and industrial automation, this shaft collar provides a reliable and precise solution for critical applications.
Top product features:
- The collar does not mar the shaft.
- It is infinitely adjustable.
- The face to bore perpendicularity is tightly controlled (TIR of < 0.05mm).
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 0.9375" bore, 45mm OD, and 15mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.29
Product info last updated on February 28, 2026 3:22am UTC
Category: Bearings, V-belts and Power Transmission Equipment
