Shaft Collar, 1pc Clamp, Bore 1.5000", OD 60mm, 303 Stainless Steel MPN:MCL-24E-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3400147

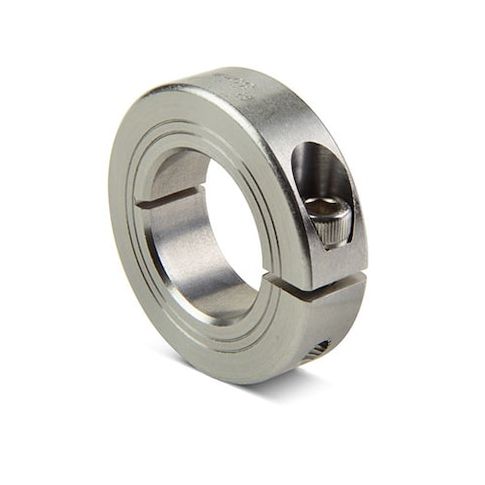

Shaft Collar, 1pc Clamp, Bore 1.5000", OD 60mm, 303 Stainless Steel
This Ruland shaft collar offers precision and durability for a variety of applications, including load bearing, mechanical stops, and component alignment. Its one-piece design and metric screw allow for easy installation with metric tools, while its tightly controlled face to bore perpendicularity ensures accurate performance. Constructed from 303 stainless steel, this collar provides consistent corrosion resistance and meets DIN 912 12.9 standards for maximum holding power. Suitable for use in industrial settings, this shaft collar is ideal for applications where precision and reliability are critical, such as in robotics, medical devices, and other high-precision machinery.
Top product features:
- Infinitely adjustable to fit various shaft diameters
- Maintains tightly controlled face to bore perpendicularity with a TIR of < 0.05mm
- Has a fine burr-free finish with hardware of like material for consistent corrosion resistance
Top product applications:
- Shaft alignment in robotic assembly lines
- Load bearing face in precision machinery
- Mechanical stop in high-speed manufacturing equipment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 1.5000" bore, 60mm OD, and 15mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.43
Product info last updated on February 3, 2026 8:41am UTC
Category: Bearings, V-belts and Power Transmission Equipment
