Shaft Collar, 1pc Clamp, Bore 48mm, OD78mm, 316 Stainless Steel, MSP-48-ST
This Ruland Shaft Collar is a precision-engineered solution for applications requiring secure shaft alignment and load bearing capabilities. Its infinitely adjustable design and superior holding power make it ideal for use in high-tolerance machinery, mechanical stops, and component alignment. The 316 stainless steel construction ensures consistent corrosion resistance, while the two-piece design allows for in-place installation and servicing. With its fine burr-free finish and hardware meeting DIN 912 12.9 standards, this shaft collar is suitable for use in demanding industries such as aerospace, medical, and food processing. Its compact size and adjustable nature make it a versatile solution for a variety of applications.
Top product features:
- Infinitely adjustable to accommodate varying shaft sizes
- Does not mar the shaft during installation
- Maintains tightly controlled face to bore perpendicularity (TIR of < 0.05mm)
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment

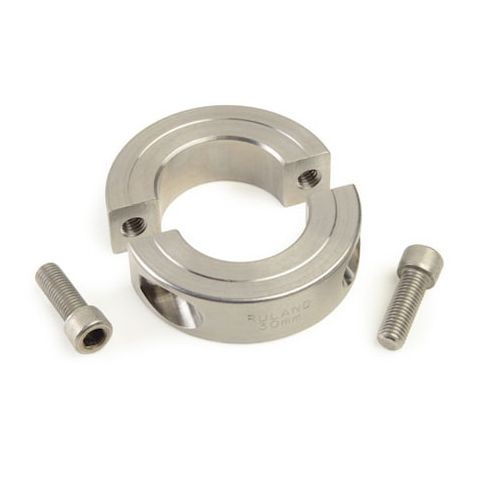

Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This two-piece shaft collar has a 48mm bore, 78mm OD, and 19mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by one groove on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 316 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 2.00
- Package Weight: 0.90
