Shaft Collar, 1pc Clamp, Bore 15mm, OD 34mm, Anodized Aluminum MPN:MCL-15-AN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3398467

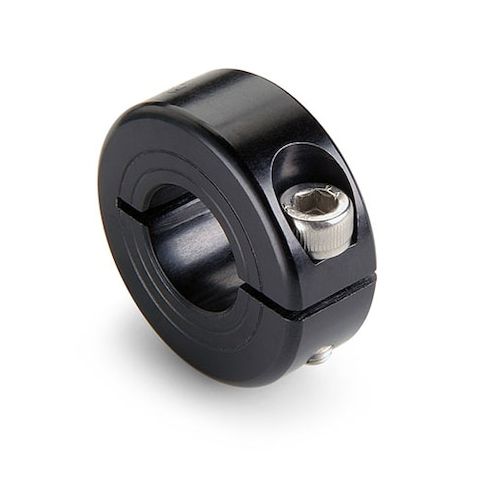

Shaft Collar, 1pc Clamp, Bore 15mm, OD 34mm, Anodized Aluminum
This one-piece shaft collar features a 15mm bore and 34mm OD, with tightly controlled face to bore perpendicularity for critical load bearing and alignment applications. Its infinitely adjustable design and superior holding power make it ideal for use in precision machinery, robotics, and other high-accuracy systems. Manufactured from high-strength 2025 black anodized aluminum, this shaft collar offers excellent corrosion resistance and a fine burr-free finish. The stainless steel hardware exceeds DIN 912 12.9 standards for maximum holding power, ensuring reliable performance in demanding environments. Suitable for use in a variety of industries, including aerospace, medical, and automation.
Top product features:
- Infinitely adjustable to accommodate various shaft sizes
- Has superior holding power compared to set screw collars
- Maintains tightly controlled face to bore perpendicularity with a TIR of < 0.05mm
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece shaft collar has a 15mm bore, 34mm OD, and 13mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 black anodized aluminum to a fine burr-free finish for light corrosion resistance. Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.06
