Shaft Collar, 1pc Clamp, Bore 26mm, OD48mm, 316 Stainless Steel, MSP-28-ST MPN:MSP-28-ST
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3398327

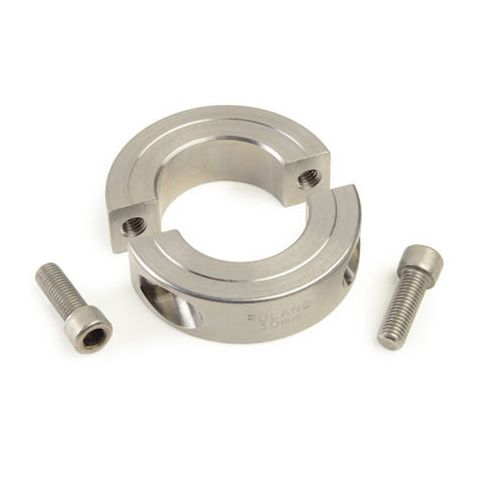

Shaft Collar, 1pc Clamp, Bore 26mm, OD48mm, 316 Stainless Steel, MSP-28-ST
The Ruland MSP-28-ST Shaft Collar is a precision-engineered two-piece design that offers superior holding power and infinitely adjustable fit for various applications. Ideal for use as a load-bearing face, mechanical stop, or component alignment, this 316 stainless steel collar features tightly controlled face-to-bore perpendicularity and a fine burr-free finish. Its unique two-piece design allows for in-place installation and servicing without removing adjacent components. Suitable for use in a range of industries, including aerospace, medical, and food processing, this collar is RoHS and REACH compliant and backed by a strict quality control process.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components.
- Halves are mated throughout the manufacturing process for precise fit and increased holding power.
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This two-piece shaft collar has a 26mm bore, 48mm OD, and 15mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by one groove on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 316 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 2.00
- Package Weight: 0.29
Product info last updated on March 20, 2026 3:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
