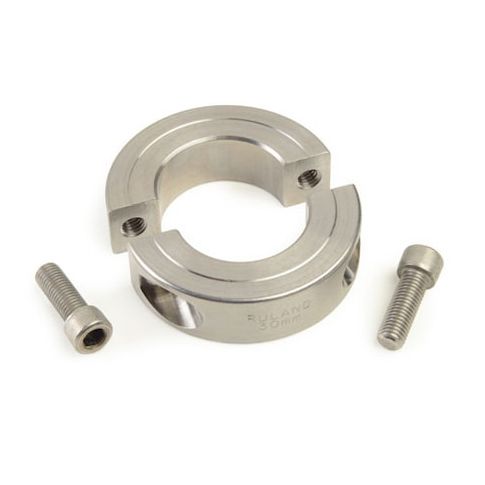

Shaft Collar, 1pc Clamp, Bore 35mm, OD57mm, 316 Stainless Steel, MSP-36-ST MPN:MSP-36-ST
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3398178
Shaft Collar, 1pc Clamp, Bore 35mm, OD57mm, 316 Stainless Steel, MSP-36-ST
The Ruland MSP-36-ST Shaft Collar is a premium, two-piece clamp-style shaft collar designed for precise and reliable applications. Its 316 stainless steel construction ensures corrosion resistance and durability, while its fine burr-free finish and tightly controlled face-to-bore perpendicularity make it ideal for use as a load-bearing face, mechanical stop, or component alignment tool. The collar's infinitely adjustable design and superior holding power make it perfect for applications where precision and reliability are critical, such as in medical devices, aerospace, and industrial machinery. Its compact size and in-place serviceability also make it a great choice for space-constrained environments.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components.
- Halves are mated throughout the manufacturing process for precise fit and increased holding power.
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This two-piece shaft collar has a 35mm bore, 57mm OD, and 15mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by one groove on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 316 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 2.00
- Package Weight: 0.37
Product info last updated on February 3, 2026 11:58pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
