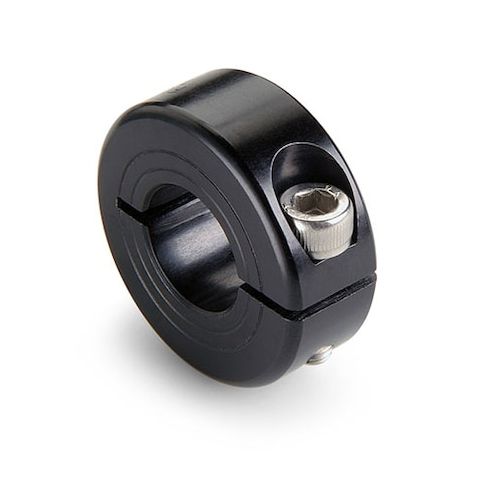

Shaft Collar, 1pc Clamp, Bore 0.5000", OD 30mm, Anodized Aluminum MPN:MCL-8E-AN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3396769
Shaft Collar, 1pc Clamp, Bore 0.5000", OD 30mm, Anodized Aluminum
This Ruland shaft collar is a precision-engineered component ideal for applications requiring secure and adjustable shaft mounting. Its clamp-style design ensures a secure grip without marring the shaft, while its infinitely adjustable nature allows for precise positioning and alignment. Suitable for use as a load-bearing face, mechanical stop, or for component alignment, this collar features a tightly controlled face-to-bore perpendicularity and a fine burr-free finish for light corrosion resistance. Its high-strength 2025 black anodized aluminum construction and stainless steel hardware make it a reliable choice for demanding industrial applications, including robotics, automation, and aerospace.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The collar is infinitely adjustable.
- The collar has superior holding power when compared to set screw collars.
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 0.5000" bore, 30mm OD, and 11mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 black anodized aluminum to a fine burr-free finish for light corrosion resistance. Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.04
