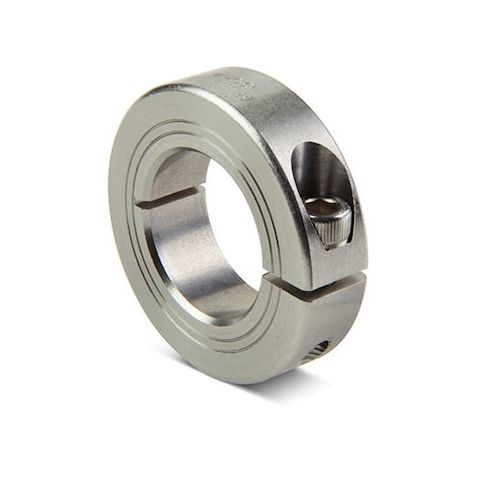

This Ruland 1pc Clamp Shaft Collar is designed for high-precision applications, featuring a tightly controlled face-to-bore perpendicularity of <0.05mm. Its 303 stainless steel construction provides consistent corrosion resistance, while the clamp-style design allows for infinite adjustability and superior holding power. Suitable for use as a load-bearing face, mechanical stop, or component alignment, this shaft collar is ideal for industries such as aerospace, medical, and robotics. Its international series design with metric outer diameter and width dimensions makes it a versatile choice for global applications. With a fine burr-free finish and RoHS and REACH compliance, this shaft collar meets the highest standards of quality and sustainability.
Top product features:
Infinitely adjustable to fit various shaft sizes
Does not mar the shaft during installation
Maintains tightly controlled face to bore perpendicularity (TIR of < 0.05mm)
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 2.5000" bore, 93mm OD, and 19mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
