Shaft Collar, 1pc Clamp, Bore 23mm, OD 45mm, Anodized Aluminum MPN:MCL-23-AN
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3396470
Shaft Collar, 1pc Clamp, Bore 23mm, OD 45mm, Anodized Aluminum
This one-piece shaft collar is designed for precision applications where a load-bearing face, mechanical stop, or component alignment is required. Its tightly controlled face-to-bore perpendicularity ensures accurate positioning and holding power. The collar's anodized aluminum construction provides a fine burr-free finish for light corrosion resistance, while stainless steel hardware exceeds DIN 912 12.9 standards for maximum holding power. Ideal for use in aerospace, automotive, and industrial equipment manufacturing, this shaft collar is suitable for applications where precision and reliability are paramount, including robotic assembly, machine tooling, and precision machinery.
Top product features:
- The product does not mar the shaft.
- It is infinitely adjustable.
- It maintains tightly controlled face to bore perpendicularity with a TIR of less than 0.05mm.
Top product applications:
- Shaft Collar, 1pc Clamp, Bore 23mm, OD 45mm, Anodized Aluminum from RULAND is used as a load bearing face in machinery.
- It is used as a mechanical stop in precision equipment.
- It is used for component alignment in high-precision applications.

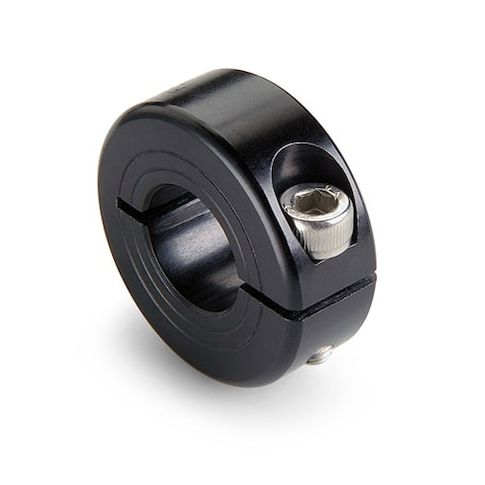

Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece shaft collar has a 23mm bore, 45mm OD, and 15mm width. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from high strength 2025 black anodized aluminum to a fine burr-free finish for light corrosion resistance. Hardware is stainless steel and tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.11
Product info last updated on January 30, 2026 7:27pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
