Shaft Collar, 1pc Clamp, Bore 0.3750", OD 24mm, 303 Stainless Steel MPN:MCL-6E-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3395947

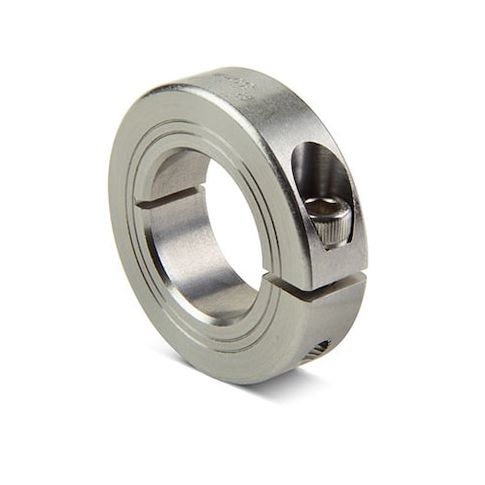

Shaft Collar, 1pc Clamp, Bore 0.3750", OD 24mm, 303 Stainless Steel
The Ruland shaft collar is a precision-engineered component ideal for applications requiring secure shaft retention and precise alignment. Its clamp-style design allows for infinite adjustability and superior holding power, making it a reliable choice for load-bearing faces, mechanical stops, and component alignment. Manufactured from 303 stainless steel, this collar offers consistent corrosion resistance and a fine burr-free finish. Its metric outer diameter and width dimensions, along with an inch bore, make it a versatile option for international projects. Suitable for industries such as automation, robotics, and aerospace, this shaft collar provides a reliable solution for precise shaft retention and alignment.
Top product features:
- Clamp style shaft collars do not mar the shaft.
- The collar has a fine burr-free finish.
- The collar has tightly controlled face to bore perpendicularity (TIR of < 0.05mm).
Top product applications:
- Shaft alignment for mechanical systems
- Load bearing face for precision machinery
- Mechanical stops for conveyor systems
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 0.3750" bore, 24mm OD, and 9mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on February 2, 2026 5:52am UTC
Category: Bearings, V-belts and Power Transmission Equipment
