CntrlFlx Cplng Hub w/Key, Dbl, Bore 14mm, OD37.0mm, Alum, MCPRDK37-14-A MPN:MCPRDK37-14-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3395579
CntrlFlx Cplng Hub w/Key, Dbl, Bore 14mm, OD37.0mm, Alum, MCPRDK37-14-A
The Ruland Controlflex Cplng Hub w/Key, Dbl, Bore 14mm, OD37.0mm, Alum, MCPRDK37-14-A is a highly customizable coupling designed for use in encoders, tachometers, resolvers, and light duty power transmission applications. Its multiple piece construction allows for easy combination of clamp hubs with various bores and keyways, providing a high level of flexibility. This double insert type hub offers higher torque capacity and balanced design, accommodating speeds of up to 15000 RPM. Suitable for a wide range of applications, including robotics, automation, and medical equipment, this coupling provides reliable and efficient power transmission.
Top product features:
- This keyed clamp style double insert type hub requires the user to mate it with one other hub and two acetal inserts.
- The use of a keyway prevents the coupling from slipping on the shaft if over torqued.
- It has a balanced design and can accommodate speeds of up to 15000 RPM.
Top product applications:
- Encoders
- Tachometers
- Light duty power transmission applications

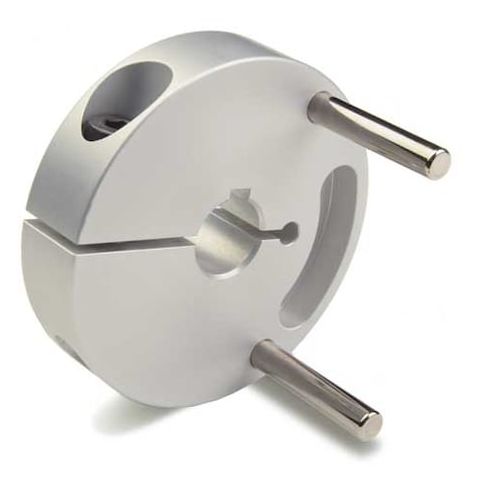

Ruland supplied Controlflex couplings are a lightweight, low inertia, and zero-backlash coupling designed for use in encoders, tachometers, resolvers, and light duty power transmission applications. This keyed clamp style double insert type hub requires the user to mate it with one other hub and two acetal inserts. The multiple piece construction allows for a highly customizable coupling that easily combines clamp hubs with inch, metric, keyed, and keyless bores. This hub has a 14mm bore, 5mm keyway, 37.0mm OD, and 10.0mm length. The use of a keyway prevents the coupling from slipping on the shaft if over torqued. This double insert type has higher torque capacity than single insert styles. It is longer than equivalent single insert Controlflex types to couple systems with wide distances between shaft ends. It has a balanced design and can accommodate speeds of up to 15000 RPM. This Controlflex hub is RoHS and REACH compliant and manufactured by Schmidt Kupplung in Germany.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.06
Product info last updated on February 24, 2026 8:52am UTC
Category: Bearings, V-belts and Power Transmission Equipment
