Shaft Collar, 1pc Clamp, Bore 0.6250", OD 34mm, 303 Stainless Steel MPN:MCL-10E-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3394477

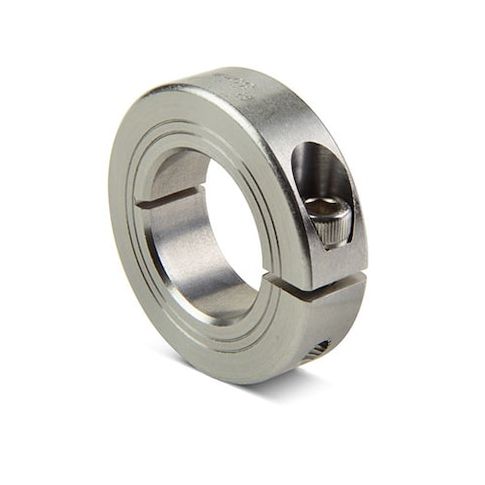

Shaft Collar, 1pc Clamp, Bore 0.6250", OD 34mm, 303 Stainless Steel
The Ruland Shaft Collar is a precision-engineered component ideal for applications requiring secure shaft retention, load bearing, and mechanical stops. Its one-piece design, made from 303 stainless steel, provides superior holding power and is infinitely adjustable without marring the shaft. The collar's tightly controlled face-to-bore perpendicularity ensures accurate alignment and positioning of components. Suitable for use in a variety of industries, including aerospace, medical, and automation, this shaft collar is perfect for applications where precision and reliability are paramount. Its corrosion-resistant design and compliance with RoHS and REACH standards make it an excellent choice for demanding environments.
Top product features:
- Clamp style shaft collars do not mar the shaft.
- Infinitely adjustable for precise fitment.
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm).
Top product applications:
- Load bearing face
- Mechanical stop
- Component alignment
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 0.6250" bore, 34mm OD, and 13mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.15
Product info last updated on March 26, 2026 1:11pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
