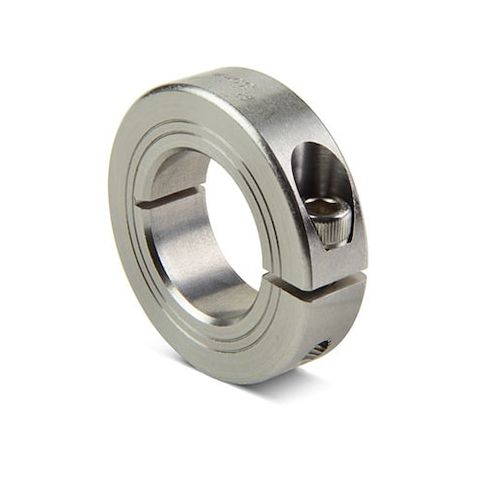

Shaft Collar, 1pc Clamp, Bore 2.2500", OD 88mm, 303 Stainless Steel MPN:MCL-36E-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3389708
Shaft Collar, 1pc Clamp, Bore 2.2500", OD 88mm, 303 Stainless Steel
This Ruland clamp-style shaft collar offers superior holding power and is infinitely adjustable, making it ideal for applications where precision and reliability are crucial. With its tightly controlled face to bore perpendicularity and fine burr-free finish, this collar is perfect for use as a load-bearing face, mechanical stop, or component alignment. Manufactured from 303 stainless steel, it provides consistent corrosion resistance and meets or exceeds DIN 912 12.9 standards. Suitable for use in a variety of industries, including aerospace, medical, and industrial automation, this shaft collar ensures precise positioning and secure holding of components.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The collar is infinitely adjustable.
- The collar is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance.
Top product applications:
- Shaft alignment in precision machinery
- Load bearing face in robotic applications
- Mechanical stop in industrial automation systems
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This one-piece international series shaft collar has a 2.2500" bore, 88mm OD, and 19mm width. International series collars have metric outer diameter and width dimensions. They are supplied with a metric screw allowing users to have an inch bore collar that can be installed with metric tools. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 303 stainless steel to a fine burr-free finish with hardware of like material for consistent corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 1.12
Product info last updated on February 3, 2026 11:54pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
