Balanced Collar, 1pc Clamp, Balanced, Bore 22mm, Steel MPN:MSPB-22-F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3387775

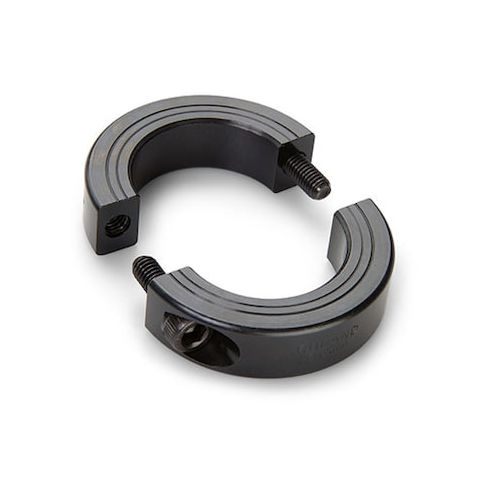

Balanced Collar, 1pc Clamp, Balanced, Bore 22mm, Steel
This Ruland balanced collar offers superior performance and holding power in high RPM applications. Its two-piece design allows for easy installation and servicing without removing adjacent components, and the halves are mated throughout manufacturing for precise fit. The collar's balanced design and tightly controlled face to bore perpendicularity ensure accurate component alignment and load bearing. Made from 1215 lead-free steel with a fine burr-free finish, this collar is ideal for use as a mechanical stop, load bearing face, or in applications requiring precise shaft positioning. It is suitable for use in a variety of industries, including aerospace and medical.
Top product features:
- Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment.
- The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components.
- Halves are mated throughout the manufacturing process for precise fit and increased holding power.
Top product applications:
- Shaft alignment in high-speed machinery
- Load bearing face in precision equipment
- Mechanical stop in high-precision assembly lines
Ruland clamp style shaft collars do not mar the shaft, are infinitely adjustable, and have superior holding power when compared to set screw collars. This two-piece shaft collar has a 22mm bore, 42mm OD, and 15mm width. It has a balanced design for better performance in high RPM applications. Tightly controlled face to bore perpendicularity is maintained (TIR of < 0.05mm) which is critical when the collar is used as a load bearing face, mechanical stop, or for component alignment. The work surface is identified by two grooves on the face allowing the user to easily identify which side is precision faced. The two-piece design allows this collar to be installed or serviced in-place without the need to remove adjacent components. Halves are mated throughout the manufacturing process for precise fit and increased holding power. This collar is stamped with the Ruland name and bore size for ease of identification. It is manufactured from 1215 lead-free steel to a fine burr-free finish with Ruland's proprietary black oxide formulation which creates a fine glossy appearance and increases holding power and corrosion resistance. Hardware tests beyond DIN 912 12.9 standards for maximum holding power. It is RoHS and REACH compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.00
- Package Height: 1.00
- Package Weight: 0.24
Product info last updated on January 22, 2026 1:39am UTC
Category: Bearings, V-belts and Power Transmission Equipment
