Disc Coupling MPN:MDCD70-30-30-A

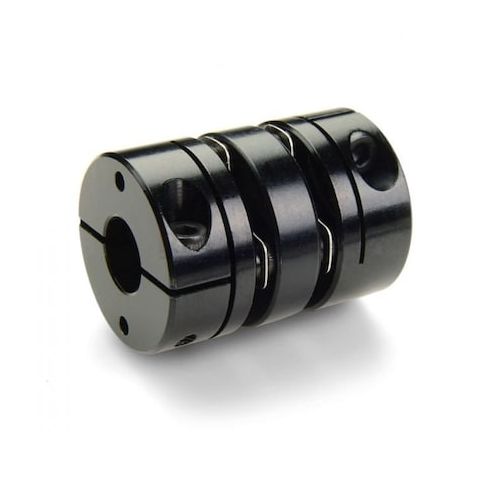

Disc Coupling
The RULAND Disc Coupling is a high-performance solution for connecting two rotating shafts with angular misalignment up to 2 degrees and axial motion of 0.76 mm. Its compact design and aluminum construction make it ideal for applications in the aerospace, medical, and industrial automation industries. The coupling's ability to handle dynamic torque of up to 48 N-m (non-reversing) and 24 N-m (reversing) makes it suitable for use in high-torque applications. Its compact size and low weight also make it an excellent choice for applications where space and weight are limited, such as in robotic and motion control systems.
Top product features:
- Angular Misalignment capacity of 2 degrees
- Axial Motion of 0.76 mm
- Dynamic Torque capacity of 48 N-m in non-reversing conditions
Top product applications:
- Power generation and transmission systems
- High-speed machinery and equipment
- Automotive and industrial gearboxes
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.76 mm, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Bore Type Round, Clearance Diameter 69.9 mm, Dynamic Torque Non-Reversing 48 N-m, Hub Length 30.5 mm, Hub Material Aluminum, Dynamic Torque Reversing 24 N-m, Coupling Outside Diameter 69.9 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 41.9 mm, Length Through Bore 2 41.9 mm, Maximum Bore Diameter 30 mm, Minimum Bore Diameter 30 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 1.33
Product info last updated on March 12, 2026 5:38pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
