Coupling, Bellows Clamp, Bore 5/16x5/16 In MPN:BC12-5-5-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2749031
Coupling, Bellows Clamp, Bore 5/16x5/16 In

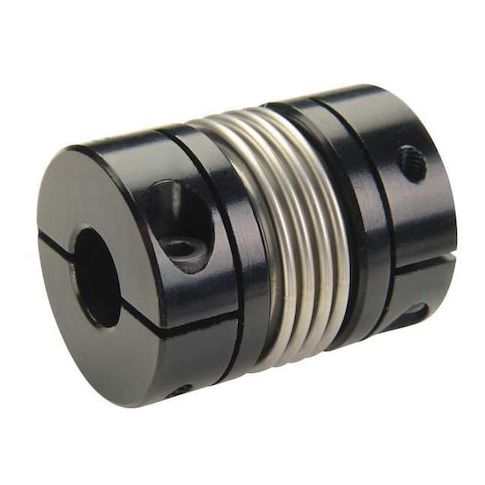

The Ruland Bellows Clamp Coupling is a versatile motion control component designed to transmit power and motion between two shafts while accommodating parallel misalignment. Its stainless steel bellows and aluminum hub provide a durable and corrosion-resistant connection. With a maximum speed of 10,000 RPM and a maximum torque of 40 in-lb, this coupling is suitable for a variety of applications, including robotics, medical devices, and precision machinery. Its compact size and lightweight design make it an ideal choice for applications where space and weight are limited, such as in aerospace and automotive industries.
Top product features:
- Aluminum hub provides a lightweight structure
- Stainless steel bellows material offers corrosion resistance
- Shaft locking type clamp on allows for easy installation and secure connection
Top product applications:
- Power Transmission in Medical Devices
- Automotive Power Steering Systems
- High-Speed Aerospace Applications
Motion Control Coupling, Bore Diameter 1 5/16 in, Bore Diameter 2 5/16 in, Coupling Outside Diameter 0.75 in, Maximum Speed 10,000 RPM, Maximum Torque 40 in-lb, Hub Material Aluminum, Overall Length 6.19 in, Shaft Locking Type Clamp On, System of Measurement Inch, Clearance Diameter 0.75 in, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 0.57 in, Length Through Bore 2 0.57 in, Parallel Misalignment 0.004 in, Bore Type Round, Dynamic Torque Non-Reversing 20 lb-in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on February 3, 2026 1:58pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
