Coupling, 4 Beam Clamp, Bore 1/2 x 5/16 In MPN:PCR18-8-5-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2627082

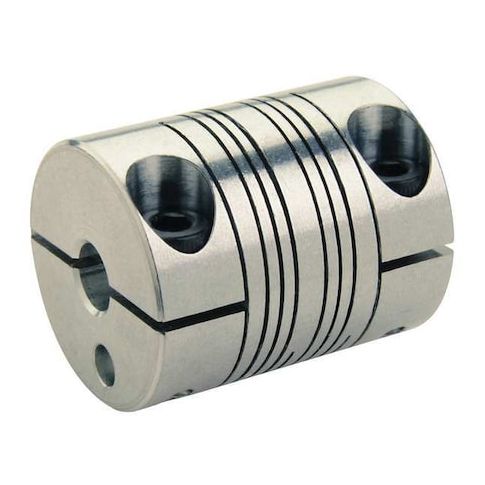

Coupling, 4 Beam Clamp, Bore 1/2 x 5/16 In
This 4-beam clamp coupling from Ruland is designed for precise motion control applications. Featuring a bore diameter of 1 1/2 inches and a maximum speed of 6,000 RPM, it's ideal for use in precision machinery and equipment. The coupling's aluminum construction provides a high level of torsional stiffness, while its clamp-on shaft locking mechanism ensures secure and easy installation. Suitable for applications requiring angular misalignment up to 3 degrees, this coupling offers a reliable and precise solution for manufacturers in industries such as medical devices, robotics, and aerospace. Its compact design and high-performance capabilities make it an excellent choice for a variety of precision applications.
Top product features:
- Angular Misalignment 3 Degrees
- Maximum Speed 6,000 RPM
- Torsional Stiffness 4.55 in-lb/Deg
Top product applications:
- Gearbox Coupling Replacement
- High-Speed Power Transmission Systems
- Precision Machine Tool Applications
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 1/2 in, Bore Diameter 2 5/16 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/8 in, Maximum Speed 6,000 RPM, Maximum Torque 34 in-lb, Axial Motion 0.01 in, Overall Length 1 1/2 in, Parallel Misalignment 0.015 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 4.55 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 4, Length Through Bore 2 0.7 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.12
