Coupling, Oldham Clamp, Bore 3/4 In MPN:OCC36-12-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2556635

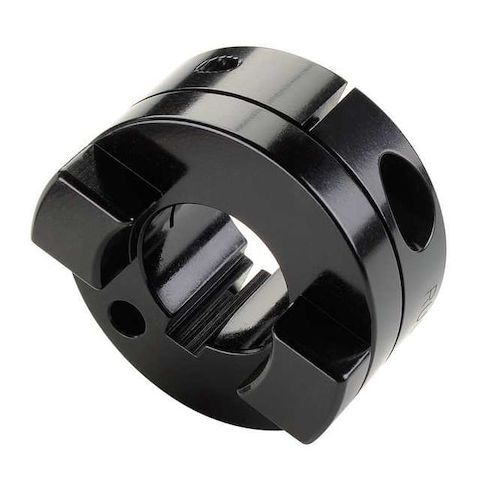

Coupling, Oldham Clamp, Bore 3/4 In
The RULAND Oldham Clamp Coupling is a high-performance motion control solution designed for precise angular misalignment and axial motion. With a bore diameter of 3/4 inch and a maximum speed of 4,500 RPM, this coupling is ideal for use in a variety of applications, including robotics, medical devices, and precision machinery. Its aluminum hub and clamp-on design provide flexibility and ease of installation, while its ability to handle up to 0.5 degrees of angular misalignment and 0.008 inches of axial motion ensures smooth and reliable operation. Suitable for applications requiring high precision and reliability.
Top product features:
- Angular misalignment of 0.5 degrees allows for flexibility in motion control applications.
- Axial motion of 0.008 in accommodates minor shaft position changes.
- Clamp-on shaft locking provides secure attachment without the need for keyways.
Top product applications:
- Robotics and automation systems
- High-speed machinery and equipment
- Precision power transmission and motion control systems
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.008 in, Coupling Size OCC36, Outside Diameter 2.25 in, Over-Standard Parallel Misalignment 0.225 in, Parallel Misalignment 0.01 in, Coupling Overall Length 3.1 in, Hub Material Aluminum, Length through Bore 1.13 in, System of Measurement Inch, Bore Diameter 3/4 in, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 3/32 in, Keyway Width 3/16 in, Screw Seating Torque 16 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.30
- Package Height: 1.60
- Package Weight: 0.44
Product info last updated on March 1, 2026 1:24am UTC
Category: Bearings, V-belts and Power Transmission Equipment
