Coupling, Oldham Clamp, Bore 1 In MPN:OCC36-16-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2477587

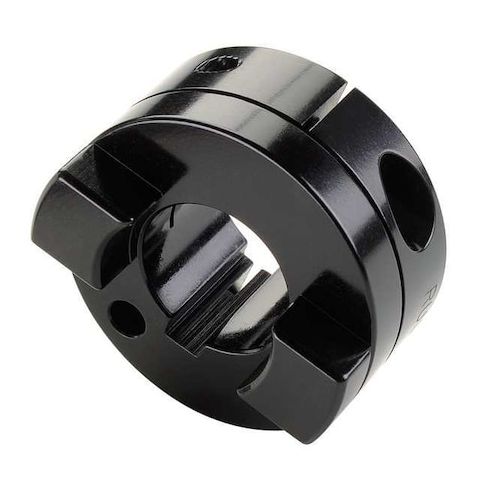

Coupling, Oldham Clamp, Bore 1 In
The RULAND OCC36 Oldham Clamp Coupling is a reliable and versatile motion control solution for demanding applications. With a bore diameter of 1 inch and a maximum speed of 4,500 RPM, this coupling is ideal for use in high-speed machinery, such as gearboxes, pumps, and motors. Its angular misalignment of 0.5 degrees and axial motion of 0.008 inches make it suitable for applications with slight misalignment, while its aluminum hub and clamp-on shaft locking design ensure secure and precise connection. Suitable for use in industries such as aerospace, automotive, and industrial automation, this coupling provides reliable power transmission and minimizes vibration and wear.
Top product features:
- Angular misalignment of 0.5 degrees allows for flexible shaft connection.
- Axial motion of 0.008 in enables smooth and quiet operation.
- Keyway depth of 1/8 in and keyway width of 1/4 in facilitate secure shaft locking.
Top product applications:
- Gearboxes and gear reducers
- High-speed spindles
- Precision machinery
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.008 in, Coupling Size OCC36, Outside Diameter 2.25 in, Over-Standard Parallel Misalignment 0.225 in, Parallel Misalignment 0.01 in, Coupling Overall Length 3.1 in, Hub Material Aluminum, Length through Bore 1.13 in, System of Measurement Inch, Bore Diameter 1 in, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 1/8 in, Keyway Width 1/4 in, Screw Seating Torque 16 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.30
- Package Height: 1.60
- Package Weight: 0.37
Product info last updated on March 31, 2026 9:55pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
