Coupling, Oldham Coupling Disc MPN:OD16/25-AT
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2417231
Coupling, Oldham Coupling Disc

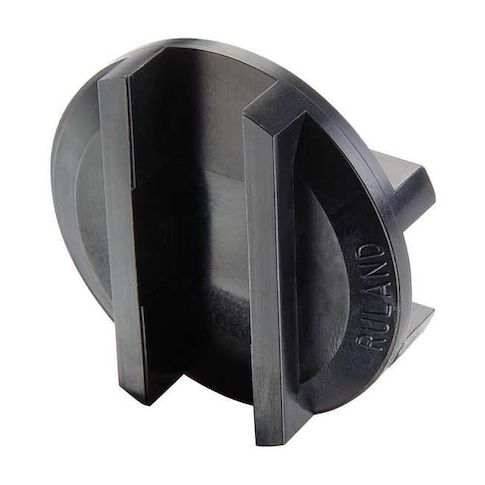

The RULAND Oldham Coupling Disc is a versatile motion control coupling designed for applications with high parallel misalignment. Its unique angular misalignment of 0.5 degrees and axial motion of 0.004 inches make it ideal for use in systems with limited space and high precision requirements. With a break torque of 168 in-lb and maximum torque of 42 in-lb, this coupling can handle demanding applications. Its use in applications with parallel misalignment up to 10% of the coupling OD makes it a valuable asset for industries requiring high precision and reliability.
Top product features:
- Angular misalignment up to 0.5 degrees
- Axial motion up to 0.004 inches
- Torsional stiffness of 30.3 in-lb/Deg
Top product applications:
- Applications With High Parallel Misalignment (Up to 10 Percent of the Coupling OD)
- Applications With High Angular Misalignment (Up to 0.5 Degrees)
- Applications in Low-Torque, Low-Speed Systems
Motion Control Coupling, Angular Misalignment 0.5 Degrees , Axial Motion 0.004 in, Coupling Size OD16, OD25, Outside Diameter 1 in, Over-Standard Parallel Misalignment 0.1 in, Parallel Misalignment 0.008 in, Break Torque 168 in-lb, Disc Material Acetal, Maximum Torque 42 in-lb, Torsional Stiffness 30.3 in-lb/Deg, System of Measurement Inch, Maximum Speed 4,500 RPM, For Hub Diameter 1 in, Application Applications With High Parallel Misalignment (Up to 10 Percent of the Coupling OD), Color Black
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on January 31, 2026 10:07pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
