SHAFT COLLAR QUICK CLAMPING MPN:LV-MCL-8E-AN
SHAFT COLLAR QUICK CLAMPING

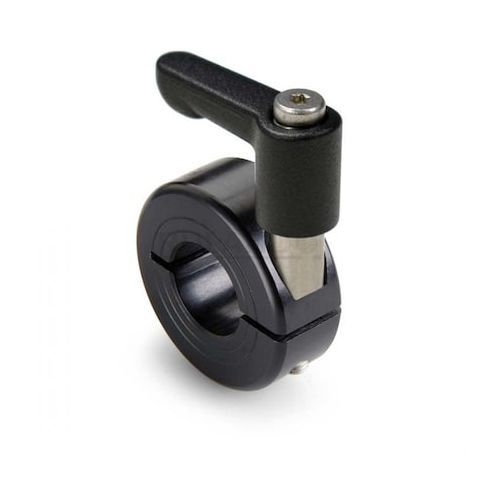

The Ruland Quick Clamping Shaft Collar is a versatile and efficient solution for securing shafts in a variety of applications. With a 1/2 inch bore diameter and 30mm outside diameter, this collar provides a secure fit for a range of shaft sizes. Constructed from corrosion-resistant 2024 aluminum, this collar offers excellent durability and resistance to wear. Its quick clamping mechanism allows for easy installation and removal, making it ideal for use in industries such as aerospace, automotive, and medical equipment manufacturing. Its compact size and lightweight design also make it suitable for use in precision machinery and equipment.
Top product features:
- Quick clamping mechanism allows for easy installation and removal
- Collar is made of corrosion-resistant aluminum alloy
- One-piece construction provides a solid and rigid design
Top product applications:
- Shaft collar used in conveyor belt systems to secure and position pulleys and idlers.
- Shaft collar used in machinery and equipment to provide a secure and adjustable mounting point for shafts and axles.
- Shaft collar used in robotics and automation to create a quick and secure connection between shafts and gears.
Quick Clamping Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1/2 in, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 32.2 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.10
Product info last updated on January 28, 2026 7:17am UTC
Category: Bearings, V-belts and Power Transmission Equipment
