Bellows Coupling MPN:MBC80-40-25-A
Bellows Coupling

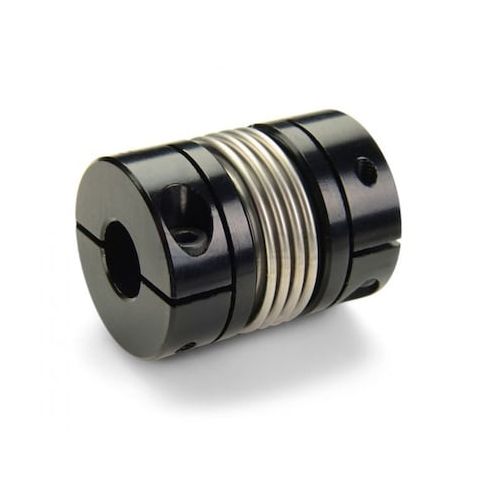

The RULAND Bellows Coupling is a versatile and reliable solution for connecting shafts in a wide range of applications. Its compact design and high-speed capabilities make it ideal for use in robotics, automation, and precision machinery. The coupling's stainless steel bellows and aluminum hub provide exceptional strength and durability, while its clamp-on shaft locking mechanism ensures easy installation and removal. With a maximum torque of 152 N-m and a maximum speed of 10,000 RPM, this coupling is perfect for high-performance applications where precision and reliability are critical. Its compact size and ease of use make it a great fit for a variety of industries.
Top product features:
- Bellows Coupling allows for parallel misalignment of up to 0.3 mm.
- It accommodates different bore sizes, including 1 40 mm and 2 25 mm.
- The shaft locking type is clamp on, providing a secure attachment method.
Top product applications:
- Power transmission in high-speed applications such as pumps and blowers
- High-torque applications such as gearboxes and motors
- Dynamic applications such as engines and compressors
Bellows Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 25 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
Product info last updated on January 28, 2026 4:11pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
