Bellows Coupling MPN:MBC70-35-35-A
Bellows Coupling

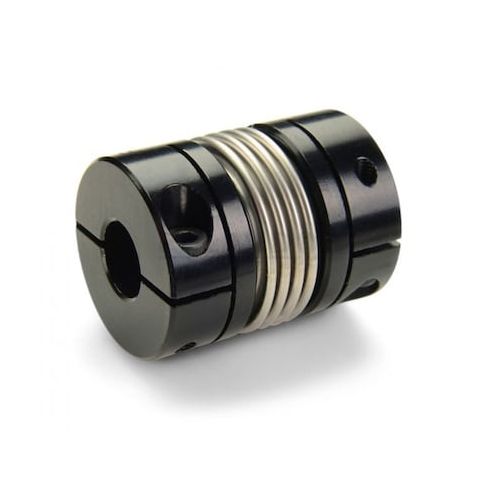

The RULAND Bellows Coupling is a high-performance coupling designed for demanding applications. Its compact 69.9mm outside diameter and 87.4mm overall length make it ideal for use in tight spaces. The coupling's stainless steel bellows and aluminum hubs provide excellent resistance to corrosion and fatigue, ensuring reliable performance in applications where misalignment and vibration are a concern. Suitable for use in various industries, including aerospace, automotive, and medical, this coupling can handle maximum torques of 104.5 N-m and speeds of up to 10,000 RPM. Its clamp-on design makes installation easy, making it a versatile and reliable solution for a wide range of applications.
Top product features:
- Clamp On Shaft Locking Type allows for secure and easy attachment to shafts.
- Bellows Material Stainless Steel provides corrosion resistance and durability.
- Maximum Speed of 10,000 RPM enables high-speed applications.
Top product applications:
- Power transmission in precision machinery
- High-speed applications in aerospace engineering
- Precision instrumentation in medical devices
Bellows Coupling, Bore Diameter 1 35 mm, Bore Diameter 2 35 mm, Coupling Outside Diameter 69.9 mm, Maximum Speed 10,000 RPM, Maximum Torque 104.5 N-m, Hub Material Aluminum, Overall Length 87.4 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 40.2 mm, Length Through Bore 2 40.2 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 52.25 N-m, Dynamic Torque Reversing 26.3 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 1.10
