Coupling, One Piece, Bore Dia 30 mm MPN:MCLC-30-30-F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1869603

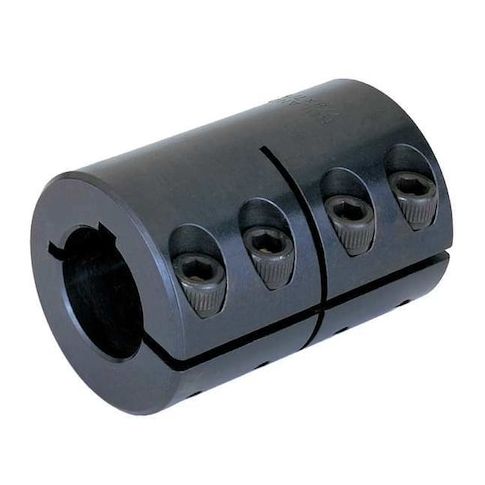

Coupling, One Piece, Bore Dia 30 mm
The RULAND One Piece Coupling is a reliable and versatile solution for connecting two shafts in various applications. Its rigid construction and keyed bore design ensure secure and precise alignment, while its carbon steel material provides durability and resistance to wear and tear. With a maximum torque of 475 N-m and a speed of up to 4,000 RPM, this coupling is suitable for a wide range of industries, including aerospace, automotive, and industrial machinery. Its compact size and clamp-on design make it easy to install and maintain, making it an ideal choice for applications where space is limited or frequent maintenance is required.
Top product features:
- Rigid shaft coupling design allows for secure connection between two shafts.
- The keyed bore design provides a secure locking mechanism for shaft alignment.
- The clamp-on shaft locking type enables easy installation and adjustment of the coupling.
Top product applications:
- Gearbox Coupling
- Power Transmission Coupling
- High-Speed Power Transmission
Rigid Shaft Coupling, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Bore Type Round Keyed, Clearance Diameter 58.7 mm, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 53 mm, Different Bore Sizes No, Keyway Depth 1 3.5 mm, Keyway Depth 2 3.5 mm, Minimum Bore Diameter 30 mm, Keyway Width 1 8 mm, Keyway Width 2 8 mm, Maximum Bore Diameter 30 mm, Maximum Speed 4,000 RPM, Maximum Torque 475 N-m, Overall Length 83 mm, Shaft Locking Type Clamp On
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 2.00
- Package Weight: 1.96
Product info last updated on January 31, 2026 5:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
