Coupling, Bellows Clamp, Bore 20x15 mm MPN:MBC51-20-15-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1856364

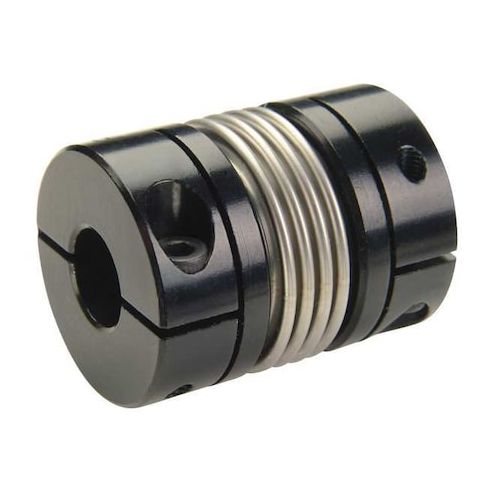

Coupling, Bellows Clamp, Bore 20x15 mm
The RULAND Bellows Clamp Coupling is a versatile motion control coupling suitable for various applications requiring high-speed and high-torque connections. Its aluminum hub and stainless steel bellows ensure durability and resistance to corrosion. With a maximum speed of 10,000 RPM and maximum torque of 45.2 N-m, this coupling can handle demanding tasks. It features a clamp-on shaft locking type and can accommodate different bore sizes, making it a convenient option for applications with limited space. Suitable for use in various industries, including aerospace, robotics, and medical devices, this coupling offers reliable and precise motion control.
Top product features:
- Motion control coupling allows for parallel misalignment of up to 0.25 mm
- Bellows clamp design provides for flexibility and vibration dampening
- Shaft locking type is clamp on for easy installation and removal
Top product applications:
- Robotics and Automation
- Power transmission in robotic arms and other machinery that requires high-speed and high-torque applications
- Precision machinery that requires flexibility and motion control
Motion Control Coupling, Bore Diameter 1 20 mm, Bore Diameter 2 15 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.20
- Package Height: 2.20
- Package Weight: 0.55
Product info last updated on February 8, 2026 11:01pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
