Coupling, Oldham Clamp, Bore 3/4 In MPN:OCC26-12-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1811257

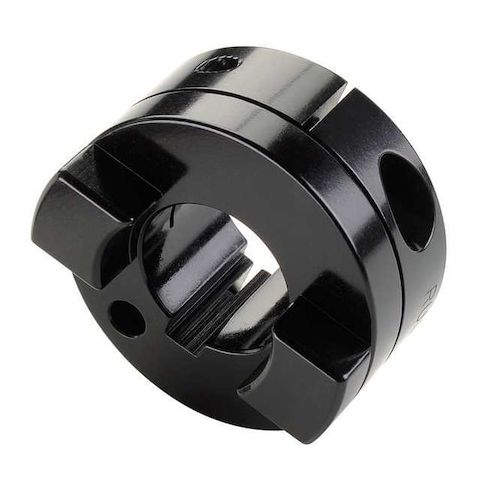

Coupling, Oldham Clamp, Bore 3/4 In
The RULAND Oldham Clamp Coupling is a versatile motion control coupling ideal for applications requiring precise angular misalignment and axial motion. Its aluminum hub and clamp-on shaft locking design provide a secure and durable connection. With a maximum speed of 4,500 RPM and a bore diameter of 3/4 inch, this coupling is suitable for a wide range of industries, including aerospace, medical, and robotics. Its compact size and low weight make it an excellent choice for applications where space and weight are a concern. Suitable for applications requiring high precision and reliability.
Top product features:
- Angular Misalignment of 0.5 Degrees allows for smooth operation in applications with slight misaligned shafts
- Axial Motion of 0.006 in enables the coupling to absorb minor shaft movements and vibrations
- Clamp On Shaft Locking Type provides a secure and easy-to-use method for locking the shaft in place
Top product applications:
- Power transmission systems in applications requiring angular misalignment and axial motion
- Precision machinery and equipment requiring high-speed operation
- Automotive and aerospace industries where compact size and high-performance are critical
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.006 in, Coupling Size OCC26, Outside Diameter 0.163 in, Over-Standard Parallel Misalignment 0.163 in, Parallel Misalignment 0.01 in, Coupling Overall Length 2 in, Hub Material Aluminum, Length through Bore 0.71 in, System of Measurement Inch, Bore Diameter 3/4 in, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 3/32 in, Keyway Width 3/16 in, Screw Seating Torque 4.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.70
- Package Height: 1.10
- Package Weight: 0.10
Product info last updated on February 24, 2026 8:34am UTC
Category: Bearings, V-belts and Power Transmission Equipment
