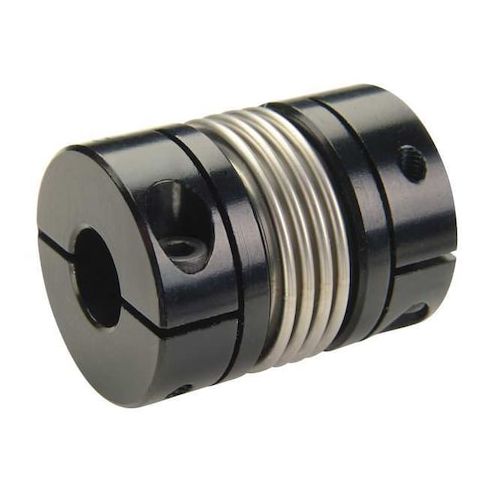

Coupling, Bellows Clamp, Bore 3/16x3/16 In MPN:BC12-3-3-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1793163
Coupling, Bellows Clamp, Bore 3/16x3/16 In
The RULAND Bellows Clamp Coupling is a high-performance motion control solution ideal for applications requiring precise alignment and flexibility. With a maximum speed of 10,000 RPM and maximum torque of 40 in-lb, this coupling is suitable for use in a variety of industries, including robotics, medical devices, and aerospace. The aluminum hub and stainless steel bellows ensure durability and resistance to corrosion, while the clamp-on shaft locking mechanism provides easy installation and removal. This coupling is perfect for applications requiring high precision and reliability, such as in servo motor systems, gearboxes, and other precision machinery.
Top product features:
- Coupling allows for parallel misalignment of up to 0.004 inches.
- Coupling has a maximum torque rating of 40 in-lb.
- Coupling can operate at speeds of up to 10,000 RPM.
Top product applications:
- Positioning and aligning shafts in precision machinery
- Connecting two shafts in a robotic assembly
- Coupling two precision instruments in a medical device
Motion Control Coupling, Bore Diameter 1 3/16 in, Bore Diameter 2 3/16 in, Coupling Outside Diameter 0.75 in, Maximum Speed 10,000 RPM, Maximum Torque 40 in-lb, Hub Material Aluminum, Overall Length 1.19 in, Shaft Locking Type Clamp On, System of Measurement Inch, Clearance Diameter 0.75 in, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 0.57 in, Length Through Bore 2 0.57 in, Parallel Misalignment 0.004 in, Bore Type Round, Dynamic Torque Non-Reversing 20 lb-in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on March 10, 2026 10:42pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
