Coupling, 6 Beam Clamp, Bore 5/16 x 1/4 In MPN:FCR12-5-4-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1754207

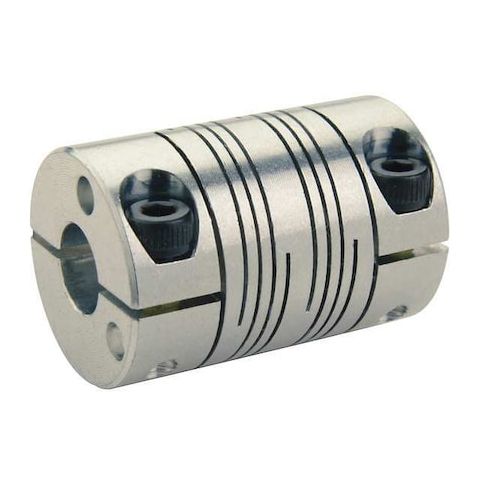

Coupling, 6 Beam Clamp, Bore 5/16 x 1/4 In
The RULAND 6 Beam Clamp Coupling is a versatile and reliable solution for precision motion control applications. Its unique design allows for up to 3 degrees of angular misalignment, making it ideal for use in robotics, automation, and medical equipment. The coupling's aluminum construction provides high torsional stiffness and a maximum speed of 6,000 RPM, while its compact size and lightweight design make it perfect for applications where space and weight are limited. Suitable for use in a variety of industries, including aerospace, industrial automation, and medical devices, this coupling offers precise motion control and reliability.
Top product features:
- Angular misalignment up to 3 degrees
- Maximum speed of 6,000 RPM
- Shaft locking through clamp-on design
Top product applications:
- Servo motor applications where high precision and low backlash are required
- Gearbox applications in robotics and automation where high torque and precision are necessary
- High-speed CNC machining applications where high-speed and high-precision are required
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 5/16 in, Bore Diameter 2 1/4 in, Coupling Material Aluminum, Coupling Outside Diameter 3/4 in, Maximum Speed 6,000 RPM, Maximum Torque 20 in-lb, Axial Motion 0.005 in, Overall Length 1 1/4 in, Parallel Misalignment 0.008 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 4.37 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 0.6 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.04
Product info last updated on January 27, 2026 3:58am UTC
Category: Bearings, V-belts and Power Transmission Equipment
