Coupling, Oldham Set Screw, Bore 1/4 In MPN:OST16-4-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1692652

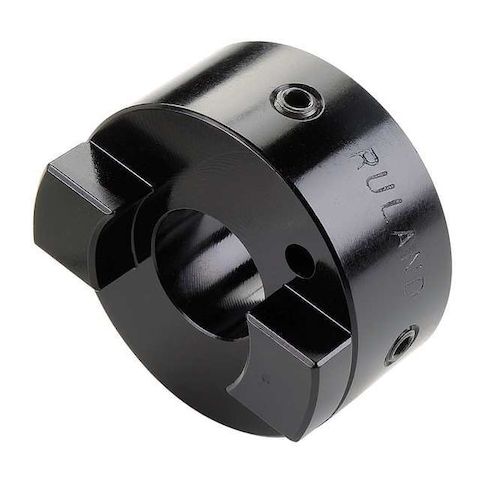

Coupling, Oldham Set Screw, Bore 1/4 In
The RULAND Oldham Set Screw Coupling is a reliable motion control solution for applications requiring high precision and flexibility. Its angular misalignment capability of 0.5 degrees and axial motion of 0.004 inches make it ideal for use in precision machinery, medical devices, and robotic systems. The coupling's aluminum hub and set screw locking mechanism ensure secure and durable connections. With a maximum speed of 4,500 RPM, it's suitable for high-speed applications. Its compact design and lightweight construction make it perfect for use in applications where space and weight are limited, such as in aerospace and industrial automation.
Top product features:
- Angular misalignment of 0.5 degrees allows for flexibility in shaft positioning.
- Axial motion of 0.004 inches enables smooth operation in dynamic applications.
- Shaft locking via set screw provides secure attachment to rotating shafts.
Top product applications:
- Gearbox and motor applications where high misalignment is expected
- Power transmission systems in medical equipment
- High-speed machinery requiring precise angular alignment
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.004 in, Coupling Size OST16, Outside Diameter 1 in, Over-Standard Parallel Misalignment 0.1 in, Parallel Misalignment 0.008 in, Coupling Overall Length 1.125 in, Hub Material Aluminum, Length through Bore 0.39 in, System of Measurement Inch, Bore Diameter 1/4 in, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Set Screw, Keyway Depth Not Applicable, Keyway Width Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 0.80
- Package Weight: 0.03
