Coupling, Bellows Clamp, Bore 6x6 mm MPN:MBC19-6-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1668843

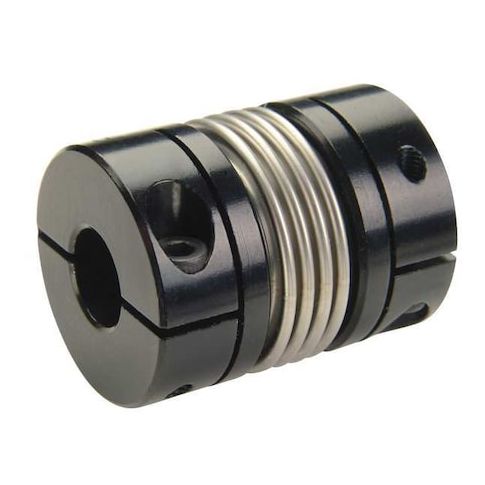

Coupling, Bellows Clamp, Bore 6x6 mm
The RULAND 6x6mm Bellows Clamp Coupling is a versatile motion control solution for precision applications. Designed for high-speed operations up to 10,000 RPM, this coupling features a maximum torque of 4.5 N-m and a dynamic torque of 2.25 N-m. The aluminum hub and stainless steel bellows ensure durability and resistance to corrosion. With a parallel misalignment of 0.1 mm, this coupling is ideal for applications requiring precise motion control, such as robotics, medical devices, and precision machinery. Its compact design and clamp-on shaft locking make it easy to integrate into a variety of systems, offering a reliable and efficient solution for demanding applications.
Top product features:
- Motion control coupling allows for parallel misalignment of up to 0.1 mm
- Bellows clamp design enables flexible motion and vibration damping
- Shaft locking via clamp-on design provides secure and easy installation
Top product applications:
- High-Speed Automation Equipment
- Precision Medical Devices
- Robotics and Mechatronics Systems
Motion Control Coupling, Bore Diameter 1 6 mm, Bore Diameter 2 6 mm, Coupling Outside Diameter 19.1 mm, Maximum Speed 10,000 RPM, Maximum Torque 4.5 N-m, Hub Material Aluminum, Overall Length 30.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 19.1 mm, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 14.5 mm, Length Through Bore 2 14.5 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 2.25 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on March 8, 2026 1:18am UTC
Category: Bearings, V-belts and Power Transmission Equipment
