Coupling, Bellows Clamp, Bore 20x16 mm MPN:MBC51-20-16-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1492766

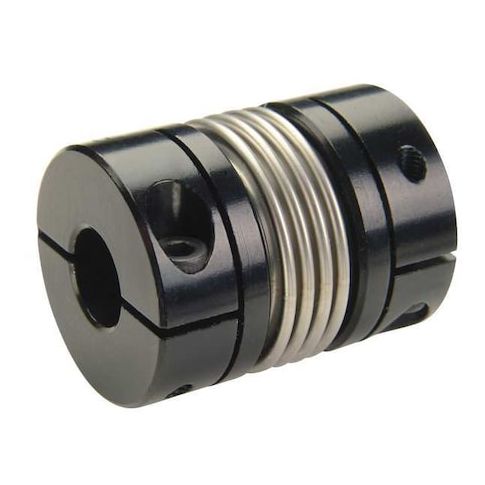

Coupling, Bellows Clamp, Bore 20x16 mm
The RULAND Coupling, Bellows Clamp is a high-performance motion control solution for applications requiring precise alignment and flexibility. Its aluminum hub and stainless steel bellows ensure durability and resistance to corrosion, while its clamp-on shaft locking system provides easy installation and adjustment. With a maximum speed of 10,000 RPM and a maximum torque of 45.2 N-m, this coupling is ideal for use in precision machinery, robotics, and medical devices. Its compact size and metric system make it suitable for a wide range of applications, including servo motors, gearboxes, and other precision motion control systems.
Top product features:
- Motion control coupling accommodates parallel misalignment of up to 0.25 mm.
- Coupling allows for non-reversing dynamic torque of up to 22.6 N-m.
- Bellows clamp design provides stainless steel bellows material for corrosion resistance.
Top product applications:
- Gearbox and motor coupling for precision machinery
- High-speed, high-torque applications in medical equipment
- Precision motion control in aerospace and defense systems
Motion Control Coupling, Bore Diameter 1 20 mm, Bore Diameter 2 16 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.20
- Package Height: 2.20
- Package Weight: 0.55
Product info last updated on March 11, 2026 10:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
