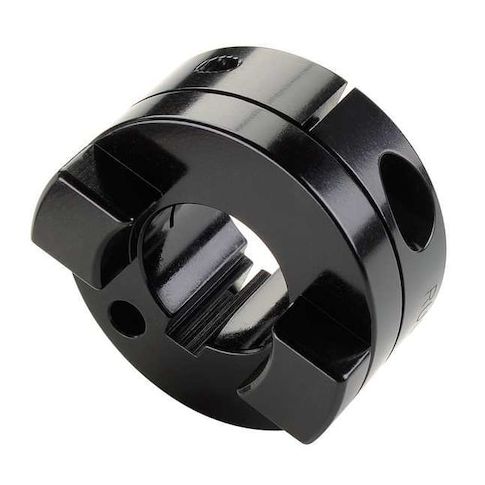

Coupling, Oldham Clamp, Bore 3/8 In MPN:OCC21-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1136134
Coupling, Oldham Clamp, Bore 3/8 In
The RULAND Oldham Clamp Coupling is a high-performance motion control coupling designed for applications requiring precise angular misalignment and axial motion. With a maximum speed of 4,500 RPM and a bore diameter of 3/8 in, this coupling is ideal for use in industrial machinery, robotics, and medical devices. Its aluminum hub and clamp-on design provide a secure and reliable connection, while its compact size and low weight make it suitable for a wide range of applications, including food processing, packaging, and laboratory equipment. Its high misalignment capabilities and long lifespan make it a reliable choice for demanding industrial applications.
Top product features:
- Angular misalignment of 0.5 degrees allows for smooth operation in applications with limited space.
- Axial motion of 0.006 in enables the coupling to absorb vibrations and shocks.
- Keyed bore type with a round keyway depth of 3/64 in and width of 3/32 in provides secure shaft locking.
Top product applications:
- Gearboxes
- Power transmission systems
- High-speed machinery
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.006 in, Coupling Size OCC21, Outside Diameter 1.313 in, Over-Standard Parallel Misalignment 0.131 in, Parallel Misalignment 0.008 in, Coupling Overall Length 1.875 in, Hub Material Aluminum, Length through Bore 0.59 in, System of Measurement Inch, Bore Diameter 3/8 in, Maximum Speed 4,500 RPM, Bore Type Round Keyed, Shaft Locking Type Clamp On, Keyway Depth 3/64 in, Keyway Width 3/32 in, Screw Seating Torque 2.1 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.10
- Package Weight: 0.04
Product info last updated on February 26, 2026 6:00pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
