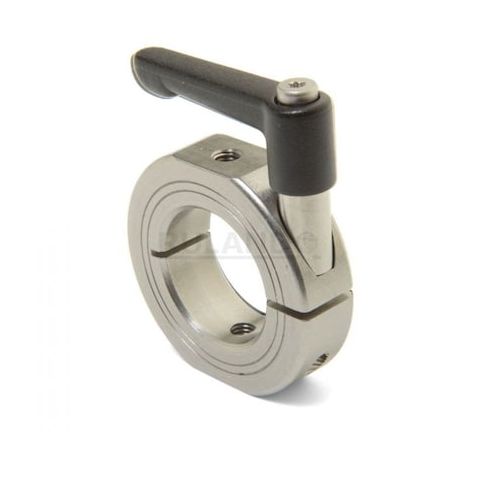

SHAFT COLLAR QUICK CLAMPING MPN:LV-OF-MCL-20-SS
SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a versatile and reliable solution for a wide range of applications, including machine building, automation, and robotics. Its stainless steel construction provides excellent corrosion resistance and durability, making it ideal for use in harsh environments. The collar's quick clamping mechanism allows for easy installation and removal, reducing downtime and increasing productivity. With a bore diameter of 20mm and a collar outside diameter of 40mm, this shaft collar is suitable for a variety of shaft sizes and can be used in applications such as gearboxes, motors, and conveyor systems.
Top product features:
- Quick clamping mechanism
- One-piece collar construction
- Corrosion-resistant material
Top product applications:
- Shaft collars are used in conveyor systems to secure and position shafts and bearings.
- They are used in gearboxes and other mechanical systems to provide a secure connection point for shafts.
- Shaft collars are used in robotics and automation systems to provide a precise and secure connection for shafts and bearings.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Resistance Properties Corrosion-Resistant, Screw Seating Torque 9.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.30
Product info last updated on January 31, 2026 10:26am UTC
Category: Bearings, V-belts and Power Transmission Equipment
