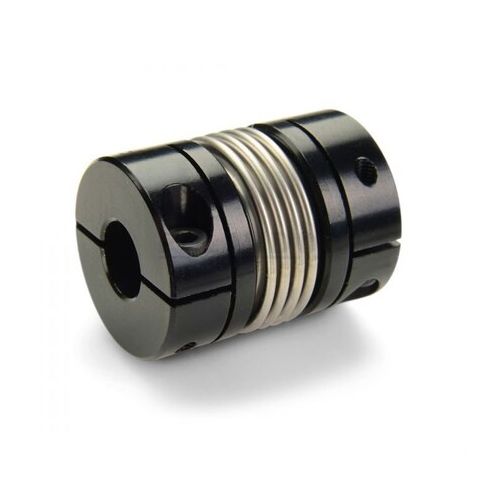

Bellows Coupling MPN:MBC80-40-30-A
Bellows Coupling
The RULAND Bellows Coupling is a versatile and reliable component designed for high-speed applications. Its stainless steel bellows and aluminum hub provide excellent durability and resistance to wear and tear. With a maximum speed of 10,000 RPM and a maximum torque of 152 N-m, this coupling is suitable for a wide range of industries, including aerospace, medical, and industrial automation. Its compact size and clamp-on shaft locking system make it easy to install and maintain. The RULAND Bellows Coupling is ideal for applications where high precision and accuracy are required, such as in gearboxes, motors, and pumps.
Top product features:
- Bellows Coupling accommodates parallel misalignment of up to 0.3 mm.
- The coupling has a maximum speed of 10,000 RPM.
- The coupling can transmit a maximum torque of 152 N-m.
Top product applications:
- Gearboxes
- Pumps
- Conveyors
Bellows Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 30 mm, Coupling Outside Diameter 79.4 mm, Maximum Speed 10,000 RPM, Maximum Torque 152 N-m, Hub Material Aluminum, Overall Length 96.9 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 79.4 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 44.5 mm, Length Through Bore 2 44.5 mm, Parallel Misalignment 0.3 mm, Bore Type Round, Dynamic Torque Non-Reversing 76 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 1.58
Product info last updated on February 1, 2026 2:47am UTC
Category: Bearings, V-belts and Power Transmission Equipment
