SHAFT COLLAR QUICK CLAMPING MPN:LV-OF-MSP-20-A
SHAFT COLLAR QUICK CLAMPING

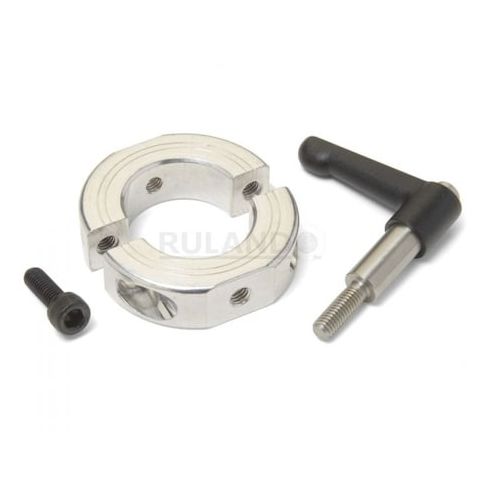

The Ruland Quick Clamping Shaft Collar is a versatile and reliable solution for securing shafts in various applications. Its 2-piece design and quick clamping mechanism allow for easy installation and removal, reducing downtime and increasing productivity. Made from high-grade aluminum (2024) and featuring a stainless steel screw, this collar provides excellent durability and resistance to corrosion. Suitable for use in a range of industries, including aerospace, medical, and industrial automation, this shaft collar is ideal for applications requiring precise shaft alignment and secure retention, such as gearboxes, motors, and conveyor systems. Its compact size and lightweight design make it easy to integrate into tight spaces.
Top product features:
- Quick clamping mechanism allows for fast and easy installation and removal of the shaft collar.
- Collar is constructed in two pieces, providing a secure and rigid design.
- Screw seating torque is designed to prevent over-tightening and damage to the shaft.
Top product applications:
- Shaft collars are often used in conveyor systems to secure and position shafts in various orientations.
- Shaft collars can be used as a mounting point for sensors and other devices in industrial automation applications.
- Shaft collars are used in robotics to provide a secure and adjustable mounting point for shafts and other components.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 38.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.17
Product info last updated on March 19, 2026 6:14pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
