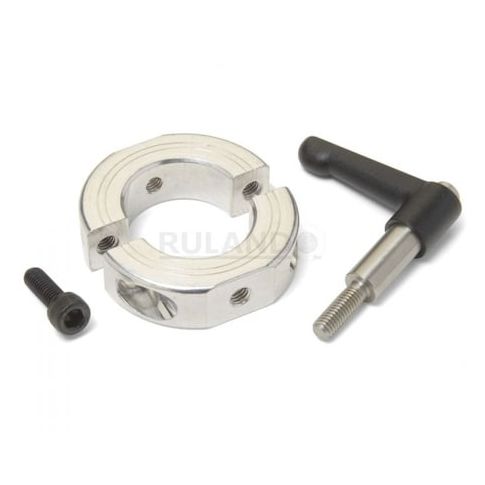

SHAFT COLLAR QUICK CLAMPING MPN:LV-OF-MSP-35-A
SHAFT COLLAR QUICK CLAMPING
The Ruland Quick Clamping Shaft Collar is a high-performance component designed for easy installation and secure holding of shafts. Made from durable 2024 aluminum, this 2-piece collar features a stainless steel screw with a 16 N-m seating torque, ensuring a reliable and long-lasting connection. With a bore diameter of 35 mm and outside diameter of 57 mm, this shaft collar is suitable for a variety of applications, including mechanical systems, robotics, and automation. Its compact size and quick clamping mechanism make it an ideal choice for industries requiring efficient and precise shaft management.
Top product features:
- Quick Clamping Mechanism: Allows for fast and easy installation and removal of the shaft collar.
- 2-Piece Collar Construction: Provides a secure and rigid connection to the shaft, minimizing the risk of slippage or damage.
- Stainless Steel Screws: Offers high corrosion resistance and a secure seating torque of 16 N-m, ensuring a reliable hold on the shaft.
Top product applications:
- Shaft collars are commonly used in conveyor systems to secure and position shafts and axles.
- They are used in industrial machinery to provide a secure and adjustable connection between shafts and other components.
- Shaft collars are also used in robotics and automation systems to provide a precise and reliable connection between shafts and actuators.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 35 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 2-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.23
Product info last updated on February 1, 2026 11:36am UTC
Category: Bearings, V-belts and Power Transmission Equipment
