SHAFT COLLAR QUICK CLAMPING MPN:LVO-MCL-40-A
SHAFT COLLAR QUICK CLAMPING

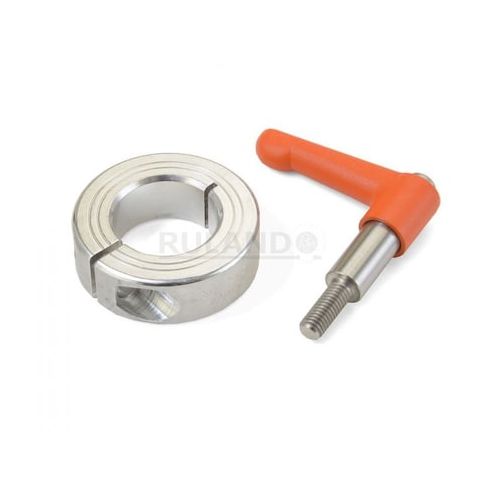

The Ruland Quick Clamping Shaft Collar is a versatile and efficient solution for securing shafts in a variety of applications, including robotics, automation, and machinery. Its aluminum construction and stainless steel screw ensure durability and resistance to corrosion, while the 1-piece design simplifies installation and reduces the risk of misalignment. The collar's quick clamping feature allows for easy adjustment and release, making it ideal for applications where frequent changes are necessary. With a bore diameter of 40mm and a collar outside diameter of 60mm, this shaft collar is suitable for use in a range of industries, including aerospace, medical, and industrial equipment.
Top product features:
- Quick clamping mechanism allows for easy installation and removal of the shaft collar.
- Collar is constructed as a single piece for added strength and durability.
- Screw is made of stainless steel for resistance to corrosion and wear.
Top product applications:
- Shaft collar quick clamping is used in conveyor systems to secure and position shafts.
- It is used in robotics to provide a secure and adjustable connection between shafts.
- Shaft collar quick clamping is used in industrial automation to connect and disconnect shafts quickly and easily.
Quick Clamping Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 40 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Collar Width 15 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Center to Lever Top 40.8 mm, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Seating Torque 16 N-m, Bore Tolerance +0.050/+0.012 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 1.00
- Package Weight: 0.24
Product info last updated on February 1, 2026 11:37am UTC
Category: Bearings, V-belts and Power Transmission Equipment
