Coupling, Two Piece, Bore Dia 25 mm MPN:MSPC-25-25-SS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0833971

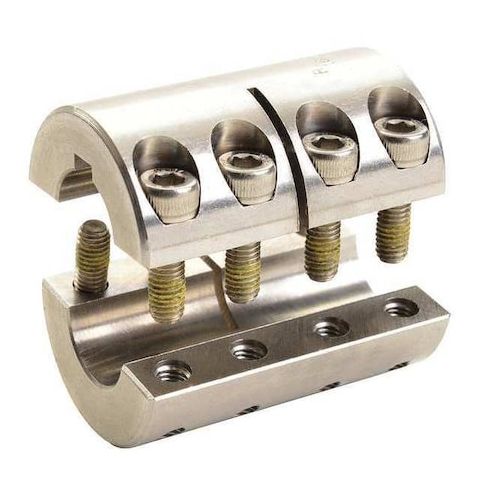

Coupling, Two Piece, Bore Dia 25 mm
This two-piece rigid shaft coupling is designed for reliable power transmission in high-speed applications. Made from durable stainless steel, it features a round keyed bore type and a clamp-on shaft locking type, ensuring secure and easy installation. With a maximum torque of 120 N-m and a maximum speed of 4,000 RPM, it's suitable for a wide range of industries including aerospace, automotive, and industrial automation. Its compact design and lightweight construction make it ideal for applications where space is limited, such as in robotics, medical devices, and other precision machinery.
Top product features:
- Two-piece construction allows for easy assembly and disassembly
- Rigid shaft coupling design provides a secure and stable connection between two shafts
- Clamp-on shaft locking type enables quick and secure attachment to shafts
Top product applications:
- Power Generation Systems
- Gearbox Coupling for High-Speed Applications
- High-Torque Industrial Equipment
Rigid Shaft Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Bore Type Round Keyed, Clearance Diameter 51.5 mm, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 45 mm, Different Bore Sizes No, Keyway Depth 1 3.5 mm, Keyway Depth 2 3.5 mm, Minimum Bore Diameter 25 mm, Keyway Width 1 8 mm, Keyway Width 2 8 mm, Maximum Bore Diameter 20 mm, Maximum Speed 4,000 RPM, Maximum Torque 120 N-m, Overall Length 75 mm, Shaft Locking Type Clamp On
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 1.26
Product info last updated on January 20, 2026 12:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
