Coupling, Bellows Clamp, Bore 5/16x1/4 In MPN:BC16-5-4-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0717997

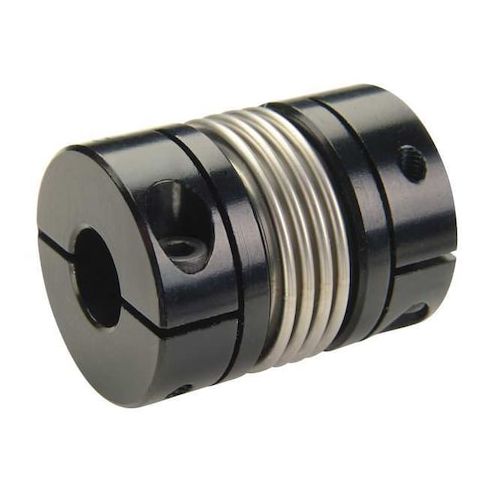

Coupling, Bellows Clamp, Bore 5/16x1/4 In
The Ruland Coupling, Bellows Clamp, is a versatile motion control coupling designed for applications requiring flexibility and precision. Its stainless steel bellows material ensures durability and resistance to harsh environments, while the aluminum hub provides a strong and lightweight design. With a maximum speed of 10,000 RPM and a maximum torque of 60 in-lb, this coupling is ideal for applications such as robotics, medical devices, and precision machinery. Its compact size and clamp-on shaft locking type make it easy to install and maintain, reducing downtime and increasing overall system efficiency. Ideal for applications requiring precise motion control and flexibility.
Top product features:
- Clamp-on shaft locking secures the coupling in place
- Allows for parallel misalignment of up to 0.004 in
- Made with stainless steel bellows for corrosion resistance
Top product applications:
- Power transmission in medical equipment
- Precision machinery assembly
- High-speed machinery mounting
Motion Control Coupling, Bore Diameter 1 5/16 in, Bore Diameter 2 1/4 in, Coupling Outside Diameter 1 in, Maximum Speed 10,000 RPM, Maximum Torque 60 in-lb, Hub Material Aluminum, Overall Length 1.33 in, Shaft Locking Type Clamp On, System of Measurement Inch, Clearance Diameter 1 in, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 0.63 in, Length Through Bore 2 0.63 in, Parallel Misalignment 0.004 in, Bore Type Round, Dynamic Torque Non-Reversing 30 lb-in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.05
Product info last updated on February 5, 2026 7:53am UTC
Category: Bearings, V-belts and Power Transmission Equipment
