Coupling, Bellows Clamp, Bore 3x3 mm MPN:MBC15-3-3-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0529015

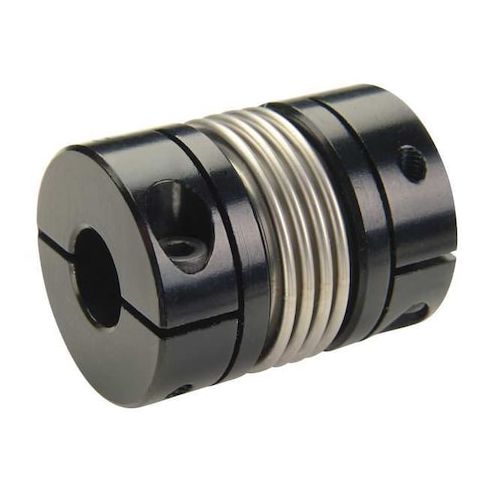

Coupling, Bellows Clamp, Bore 3x3 mm
The Ruland 3x3 mm Bellows Clamp Coupling is a high-performance motion control component designed for applications requiring precise alignment and flexibility. Its aluminum hub and stainless steel bellows ensure durability and resistance to corrosion, while the clamp-on shaft locking mechanism provides easy installation and secure retention. With a maximum speed of 10,000 RPM and a maximum torque of 2.5 N-m, this coupling is suitable for a wide range of applications, including robotics, medical devices, and aerospace equipment. Its compact size and high performance make it an ideal choice for applications where precision and reliability are critical.
Top product features:
- Motion Control Coupling suitable for high-speed applications up to 10,000 RPM
- Coupling can accommodate parallel misalignment of up to 0.1 mm
- Bellows material is made of stainless steel for corrosion resistance
Top product applications:
- Motion control in small robotic systems
- Precision instrument calibration and testing
- High-speed medical device testing and validation
Motion Control Coupling, Bore Diameter 1 3 mm, Bore Diameter 2 3 mm, Coupling Outside Diameter 15 mm, Maximum Speed 10,000 RPM, Maximum Torque 2.5 N-m, Hub Material Aluminum, Overall Length 27.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Bellows Material Stainless Steel, Different Bore Sizes No, Length Through Bore 1 12.5 mm, Length Through Bore 2 13.1 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 1.25 N-m, Dynamic Torque Reversing 0.63 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.04
Product info last updated on January 27, 2026 11:43am UTC
Category: Bearings, V-belts and Power Transmission Equipment
