Coupling, Bellows Clamp, Bore 5x4 mm MPN:MBC19-5-4-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0501812

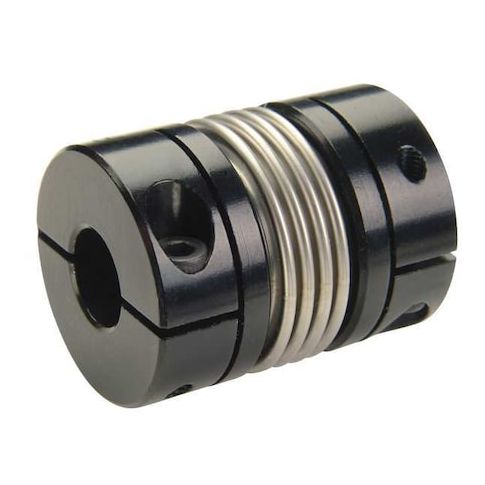

Coupling, Bellows Clamp, Bore 5x4 mm
The RULAND Coupling, Bellows Clamp, Bore 5x4 mm is a high-performance motion control coupling designed for applications requiring precise alignment and high-speed operation. Its stainless steel bellows and aluminum hub provide a durable and corrosion-resistant solution for connecting shafts with different bore sizes. With a maximum speed of 10,000 RPM and maximum torque of 4.5 N-m, this coupling is ideal for use in robotics, medical devices, and other precision machinery. Its compact design and clamp-on shaft locking system make it easy to integrate into existing systems, reducing downtime and increasing overall efficiency.
Top product features:
- Motion control coupling allows for parallel misalignment of up to 0.1 mm
- Bellows clamp design provides flexibility and accommodates different bore sizes
- Shaft locking type is clamp on, allowing for easy and secure attachment
Top product applications:
- Motion control coupling for high-speed applications
- Precision instrument calibration and measurement systems
- Robotic assembly and automation systems
Motion Control Coupling, Bore Diameter 1 5 mm, Bore Diameter 2 4 mm, Coupling Outside Diameter 19.1 mm, Maximum Speed 10,000 RPM, Maximum Torque 4.5 N-m, Hub Material Aluminum, Overall Length 30.2 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 19.1 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 14.5 mm, Length Through Bore 2 14.5 mm, Parallel Misalignment 0.1 mm, Bore Type Round, Dynamic Torque Non-Reversing 2.25 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
Product info last updated on March 24, 2026 9:43pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
