Coupling, 6 Beam Clamp, Bore 3/4 x 3/8 In MPN:FCR24-12-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0339394

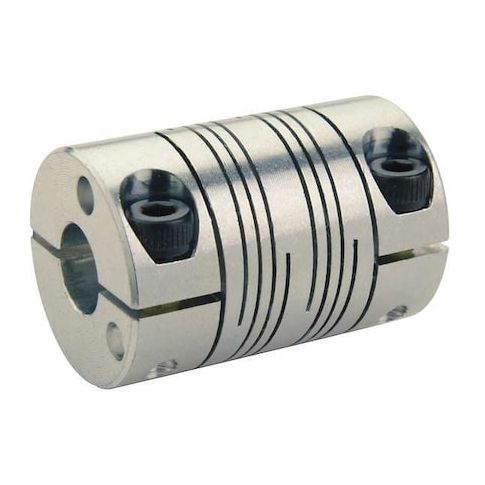

Coupling, 6 Beam Clamp, Bore 3/4 x 3/8 In
The RULAND 6 Beam Clamp Coupling is a versatile and reliable motion control solution for a wide range of applications. Ideal for use in precision machinery, robotics, and medical devices, this coupling features a unique 6-beam design that allows for 3 degrees of angular misalignment and 0.03 inches of parallel misalignment. With a maximum speed of 6,000 RPM and a maximum torque of 80 in-lb, this coupling is suitable for high-performance applications where precision and reliability are paramount. Its compact design and lightweight aluminum construction make it an excellent choice for applications where space and weight are a concern.
Top product features:
- Angular misalignment of 3 degrees
- Torsional stiffness of 15.87 in-lb/Deg
- Clamp-on shaft locking mechanism
Top product applications:
- Gearbox to Motor Connection
- Precision machinery assembly
- Robotics and automation systems
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/4 in, Bore Diameter 2 3/8 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/2 in, Maximum Speed 6,000 RPM, Maximum Torque 80 in-lb, Axial Motion 0.015 in, Overall Length 2 1/4 in, Parallel Misalignment 0.03 in, System of Measurement Inch, Different Bore Sizes Yes, Torsional Stiffness 15.87 in-lb/Deg, Bore Type Round, Shaft Locking Type Clamp On, Number of Beams 6, Length Through Bore 2 1.1 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.30
Product info last updated on March 20, 2026 11:21pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
