Coupling, Bellows Clamp, Bore 20x14 mm MPN:MBC51-20-14-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0244185

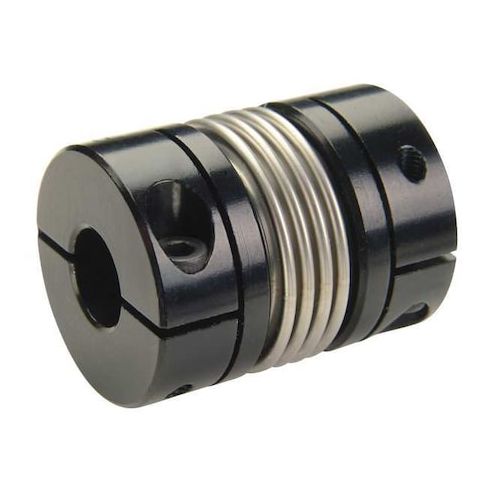

Coupling, Bellows Clamp, Bore 20x14 mm
The RULAND Bellows Clamp Coupling is a high-performance motion control component designed for applications requiring precise alignment and flexibility. Its stainless steel bellows and aluminum hub provide a durable and corrosion-resistant connection between two shafts with different bore sizes. With a maximum speed of 10,000 RPM and a maximum torque of 45.2 N-m, this coupling is ideal for use in high-speed machinery, robotics, and automation systems. Its compact design and clamp-on shaft locking type make it easy to install and maintain, reducing downtime and increasing overall system efficiency. Suitable for a wide range of industries and applications.
Top product features:
- Clamp on shaft locking type allows for easy installation and removal
- Bellows made of stainless steel provides resistance to corrosion and wear
- Allows for parallel misalignment of up to 0.25 mm for flexible coupling application
Top product applications:
- Machine Tool Coupling
- Automotive Power Steering System
- Robotics and Automation
Motion Control Coupling, Bore Diameter 1 20 mm, Bore Diameter 2 14 mm, Coupling Outside Diameter 50.8 mm, Maximum Speed 10,000 RPM, Maximum Torque 45.2 N-m, Hub Material Aluminum, Overall Length 58.7 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Clearance Diameter 50.8 mm, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 27.9 mm, Length Through Bore 2 27.9 mm, Parallel Misalignment 0.25 mm, Bore Type Round, Dynamic Torque Non-Reversing 22.6 N-m
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.20
- Package Height: 2.20
- Package Weight: 0.55
Product info last updated on February 1, 2026 1:46am UTC
Category: Bearings, V-belts and Power Transmission Equipment
