Motion Control Coupling, 10x6, Aluminum, M3 MPN:MDCS25-10-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0161099

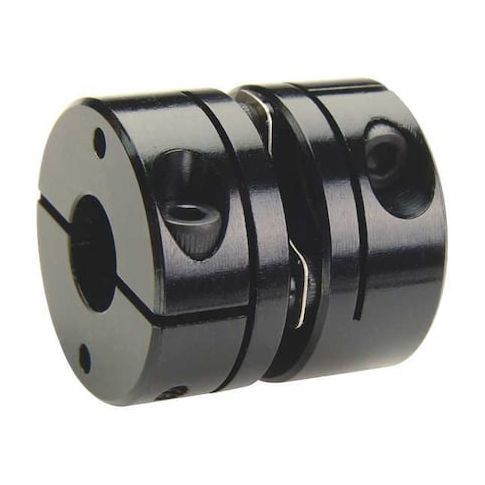

Motion Control Coupling, 10x6, Aluminum, M3
The RULAND Motion Control Coupling is a precision-engineered solution for applications requiring high accuracy and reliability. Designed for angular misalignment and axial motion, this coupling allows for smooth transmission of motion and torque between two shafts. With a dynamic torque capacity of 2.8 N-m non-reversing and 1.4 N-m reversing, it is suitable for use in a variety of industries, including robotics, medical devices, and aerospace. The coupling's compact design and aluminum hub make it ideal for applications where space is limited, and its clamp-on shaft locking mechanism ensures easy installation and maintenance.
Top product features:
- Angular Misalignment up to 1 degree
- Axial motion up to 0.15 mm
- Dynamic torque non-reversing up to 2.8 N-m and dynamic torque reversing up to 1.4 N-m
Top product applications:
- Robotics and Automation
- Precision machinery assembly
- Medical device manufacturing
Motion Control Coupling, Angular Misalignment 1 Degrees , Axial Motion 0.15 mm, Bore Diameter 1 10 mm, Bore Diameter 2 6 mm, Bore Type Round, Dynamic Torque Non-Reversing 2.8 N-m, Hub Length 11.8 mm, Hub Material Aluminum, Dynamic Torque Reversing 1.4 N-m, Coupling Outside Diameter 25.4 mm, Number of Discs 1, Length Through Bore 1 12.7 mm, Length Through Bore 2 12.7 mm, Maximum Bore Diameter 10 mm, Minimum Bore Diameter 6 mm, Shaft Locking Type Clamp On, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 0.07
Product info last updated on February 1, 2026 7:48am UTC
Category: Bearings, V-belts and Power Transmission Equipment
