Hoist Ring, 180 Pvt, 17, 630 lb. Load Cap. MPN:7989907

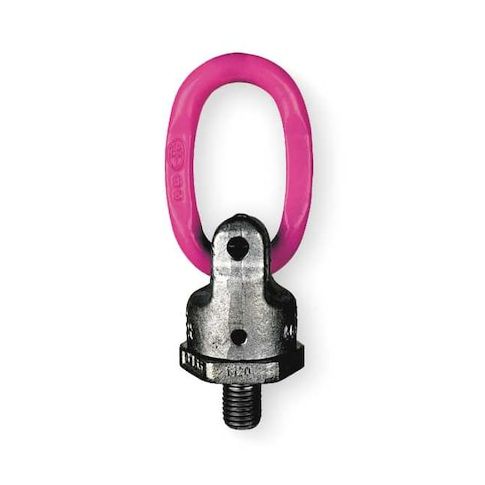

Hoist Ring, 180 Pvt, 17, 630 lb. Load Cap.
The Hoist Ring from Rud Chain is a heavy-duty lifting solution designed for demanding applications. With a 17,630 lb load capacity and 230° pivot angle, it provides reliable and precise control for lifting and pulling operations. Its 360° swivel function allows for smooth movement and versatility. Constructed from durable steel with a powder-coated finish, this ring is built to withstand harsh environments. Suitable for use in industries such as construction, manufacturing, and logistics, it offers a reliable and efficient solution for heavy lifting tasks, reducing the risk of accidents and improving overall productivity.
Top product features:
- Pivot angle of 230 degrees allows for flexibility in lifting and positioning loads.
- Swivel angle of 360 degrees enables smooth rotation and maneuverability.
- Working load limit of 17,630 lb provides a high capacity for lifting and pulling heavy loads.
Top product applications:
- Construction hoisting and lifting
- Industrial equipment installation and maintenance
- Heavy machinery moving and positioning
Hoist Ring, Movement Type Pivot, Swivel, Material Steel, Mount Type Screw-On, Working Load Limit 17,630 lb, Thread Size 1 1/2 In.-6, Operation Lifting, Pulling, Pivot Angle 230 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 2 1/8 in, Bail Inside Length 5 1/2 in, Bail Inside Width 2 5/8 in, Bail Thickness 15/16 in, Overall Length 9 1/4 in, Overall Width 3 1/2 in, Hardware Included Not Applicable, Minimum Installation Torque 302.4 ft-lb, Finish Powder Coated
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 6.50
- Package Height: 6.60
- Package Weight: 13.40
Product info last updated on February 26, 2026 9:25am UTC
Category: Lifting, Pulling and Positioning
