Hoist Ring, 180 Pivot, 5500 lb.Load Cap. MPN:7989903
Hoist Ring, 180 Pivot, 5500 lb.Load Cap.

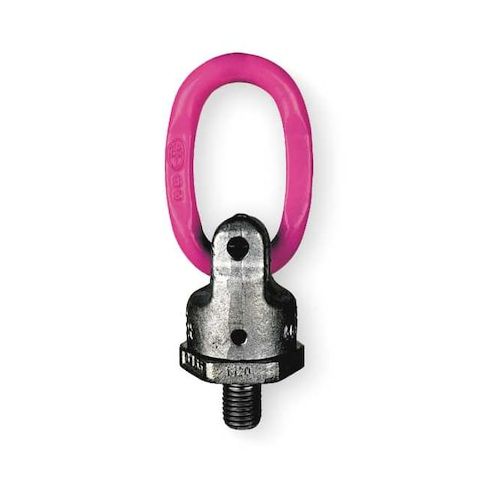

The Rud Chain Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a 5500 lb load capacity and 360-degree swivel, this ring provides versatile movement and stability. Suitable for lifting operations, it features a 230-degree pivot angle and a 3/4 in.-10 thread size. Constructed from durable steel with a powder-coated finish, it withstands harsh environments and extreme temperatures. Ideal for industries such as construction, manufacturing, and logistics, this hoist ring ensures safe and efficient lifting. Its compact design and screw-on mounting make it easy to install, making it a reliable choice for heavy-duty lifting tasks.
Top product features:
- Pivot angle of 230 degrees and swivel angle of 360 degrees for improved maneuverability
- Working Load Limit of 5,000 lb for safe and reliable lifting
- Powder coated finish for corrosion resistance and durability
Top product applications:
- Hoist rings are often used in the construction industry for lifting heavy materials and equipment.
- Hoist rings are commonly used in heavy machinery manufacturing for lifting and moving large parts and components during the assembly process.
- Hoist rings are used in the oil and gas industry for lifting and moving heavy equipment and pipes during installation and maintenance operations.
Hoist Ring, Movement Type Pivot, Swivel, Material Steel, Mount Type Screw-On, Working Load Limit 5,000 lb, Thread Size 3/4 In.-10, Operation Lifting, Pivot Angle 230 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 1/4 in, Bail Inside Length 3 in, Bail Inside Width 1 5/8 in, Bail Thickness 33/64 in, Overall Length 6 1/2 in, Overall Width 2 3/8 in, Hardware Included Not Applicable, Minimum Installation Torque 51.6 ft-lb, Finish Powder Coated, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 6.50
- Package Height: 6.60
- Package Weight: 2.85
