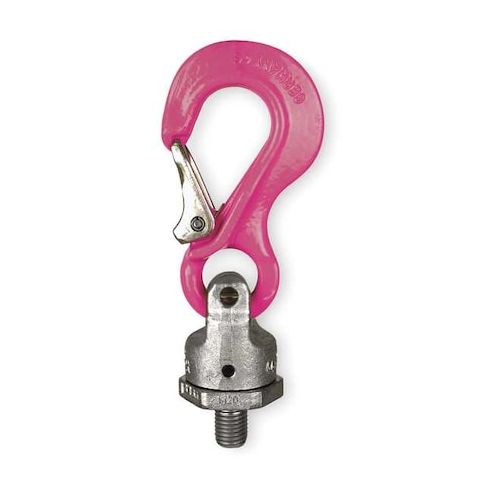

Hoist Ring, 180 Pivot, 5500 lb.Load Cap. MPN:7989910
Hoist Ring, 180 Pivot, 5500 lb.Load Cap.
The Rud Chain Hoist Ring is a heavy-duty lifting solution designed for demanding applications. With a 5500 lb load capacity and 360° swivel angle, this pivot ring provides maximum flexibility and stability. Its powder-coated steel construction ensures durability and resistance to corrosion. Ideal for use in industries such as manufacturing, construction, and warehousing, this hoist ring is perfect for lifting and moving heavy loads. Its compact design and easy screw-on installation make it a convenient and reliable choice for professionals and DIYers alike, offering a cost-effective solution for a wide range of lifting applications.
Top product features:
- Pivot angle of 230 degrees allows for a wide range of motion.
- Swivel angle of 360 degrees enables smooth and continuous rotation.
- Working load limit of 5,000 pounds provides a high level of lifting capacity.
Top product applications:
- Hoist rings are often used in heavy machinery and equipment to lift and move heavy loads.
- Construction equipment such as cranes and excavators use hoist rings to lift and move heavy loads.
- Industrial rigging applications rely on hoist rings to lift and move heavy loads safely and efficiently.
Hoist Ring, Movement Type Pivot, Swivel, Material Steel, Mount Type Screw-On, Working Load Limit 5,000 lb, Thread Size 7/8 In.-9, Operation Lifting, Pivot Angle 230 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 7/8 in, Bail Inside Length 1 1/4 in, Bail Inside Width 1 1/4 in, Bail Thickness 1 1/8 in, Overall Length 9 5/8 in, Overall Width 2 3/8 in, Hardware Included Not Applicable, Minimum Installation Torque 51.6 ft-lb, Finish Powder Coated
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 120 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.60
- Package Height: 6.60
- Package Weight: 4.00
Product info last updated on January 10, 2026 2:58pm UTC
Category: Lifting, Pulling and Positioning
